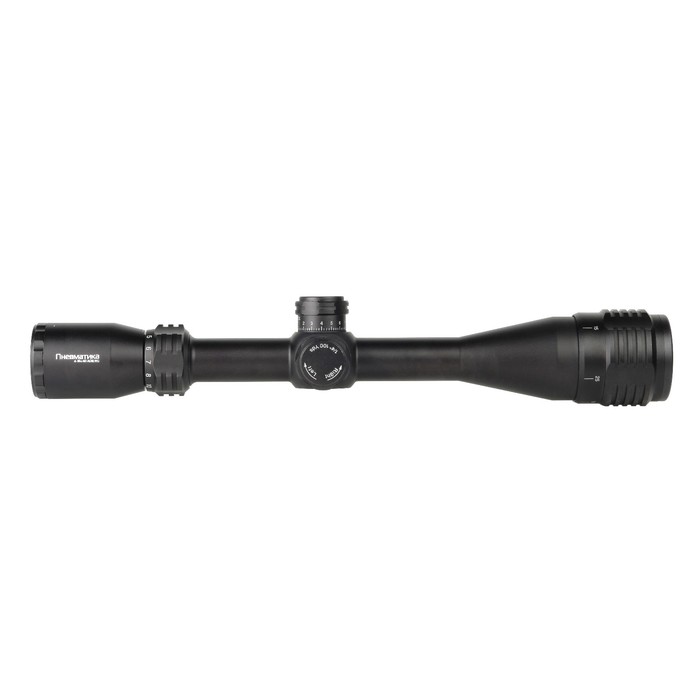

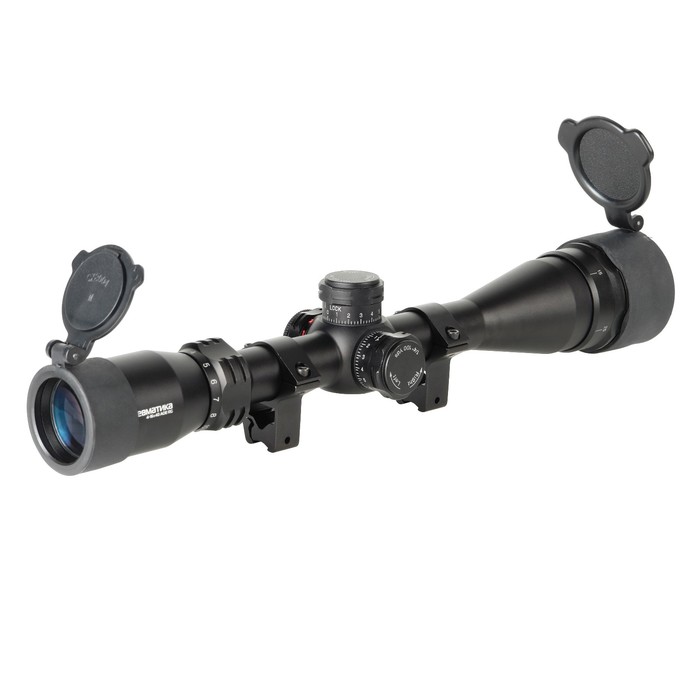

Optical sight Veber Pneumatics 4-16 × 40 AOE RG

Optical Veber Pneumatics 4-16x40 AOE RG is designed specifically for use with pneumatic weapons of a spring-piston type with muzzle energy up to 20 J and PCP type with preliminary air pumping of any power.

The strong design of the sight can withstand both direct and reverse recoil.

The sight has a variable increase from 4 to 16x, a 5 mm light lens and high characteristics of light transmission, which are achieved by optical enlightenment of all parts (FMC).

The shooter will easily find a goal and will be able to lead it at a distance even in conditions of weak lighting (at dawn or at dusk, dense forest, etc.).

A convenient tactical grid with crossbar backlit, the parallax rebuilding mechanism and the mechanisms for entering the amendments will help to make an accurate shot.

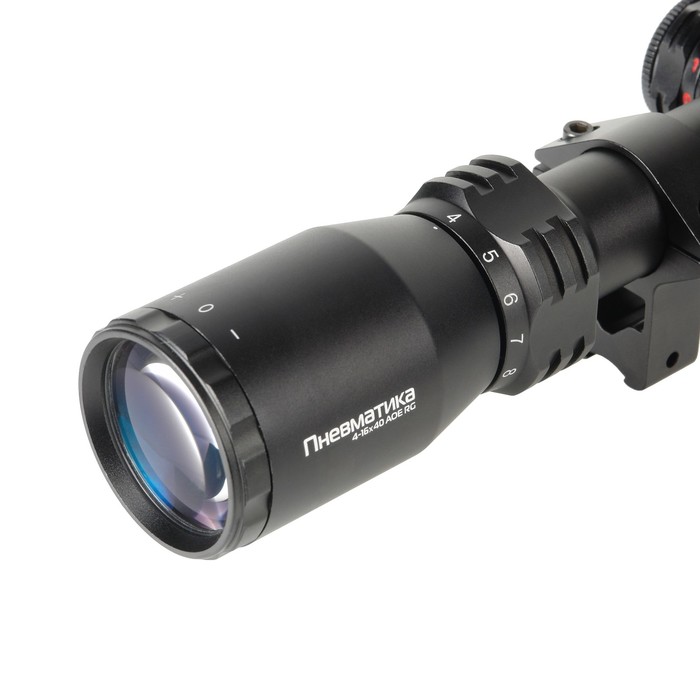

Ring of a change in the frequency of the sight with the adjusting scale for the exact ballistic calculation with the required increase is located behind the eyepiece. The ring rotates evenly with a dosed effort.

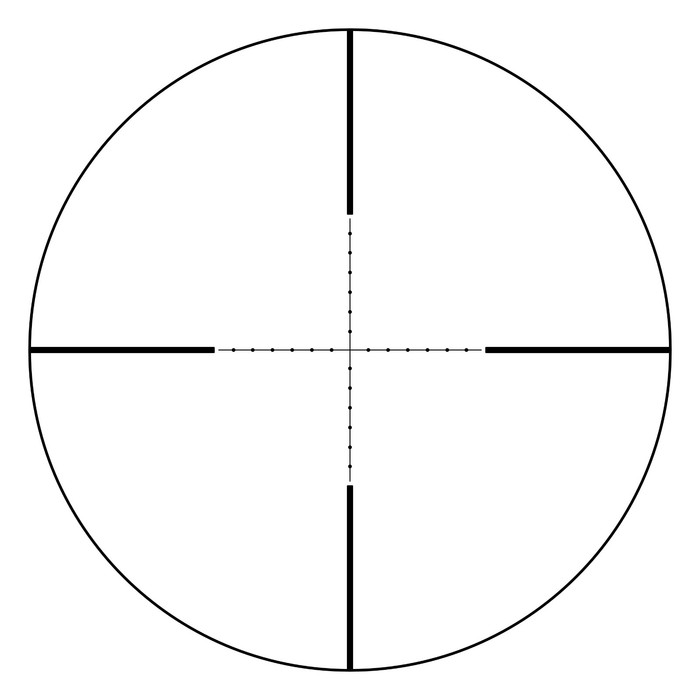

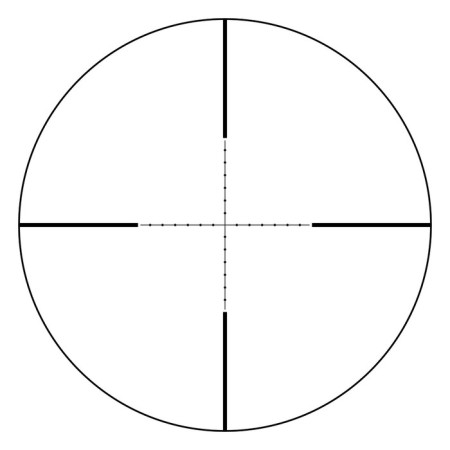

The MIL DOT tactical sight, etched on the glass, is located in the second focal plane. With an increase or decrease in the ratio of the sight, the size of the grid visually does not change. The adjustable backlighting of red or green crosses will distinguish between the net in difficult conditions of illumination and the surrounding landscape.

The brightness of the backlight and color is installed using the adjustment ring. When rotating the ring for one revolution, it takes five fixed positions with various degrees of brightness of the brand and one turned off for each of the two colors.

The backlight is powered by an electric battery of the CR2032 type, which is installed under the threaded cover on the adjustment ring.

Parallax’s rebuilding is carried out by rotation of the ring with the adjusting scale located on the sight of the sight. The parallax compensation mechanism eliminates the visible displacement of the aiming grid relative to the target during the aiming, increasing the accuracy of shooting at close distances from 10Y (9.1 meters).

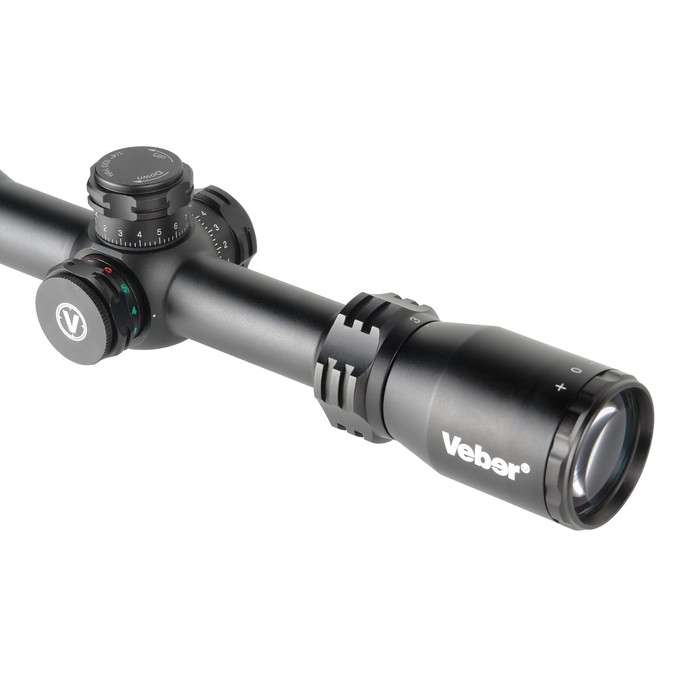

Tactical drums for the introduction of amendments allow you to quickly respond to external conditions of shooting - wind, a distance of a shot, features of weapons, etc. The drums are blocked by the mechanism (PUSH/PULL LOCK) and are brought into working condition when they are pulled up to the stop. The scales of the input mechanisms are defined in inches, the price of 1 click - 1/4 "per 100Y (about 7 cm per 100 m). Well -audible and tactfully noticeable clicks or clicks will help the arrow adjusted from observation.

The diopter ring on the eyepiece allows you to focus the aiming grid so that it remains clear regardless of the shooter's vision.

an all -metal case made of anodized aluminum alloy filled with nitrogen is resistant to adverse external influences. The sight is protected from fogging and can be used at temperatures from -25 ° C...+40 ° C.

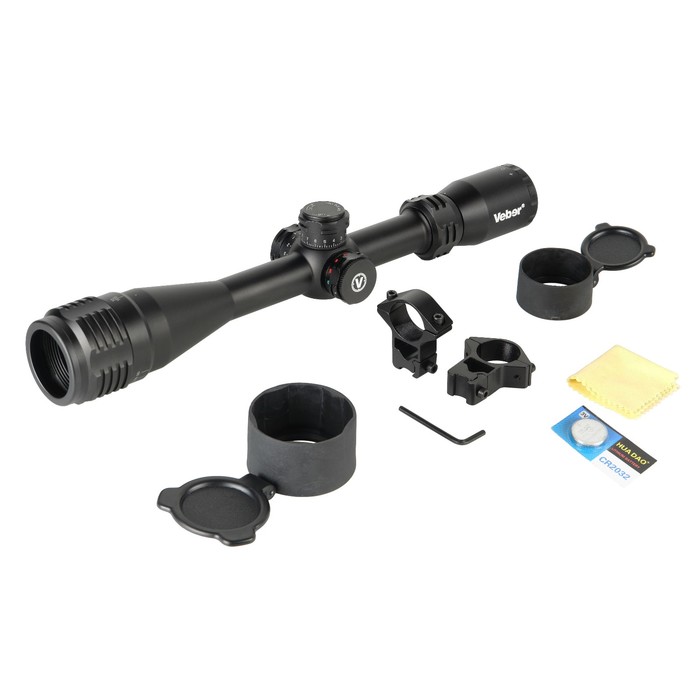

The mounting rings will help set the sight on the “Lastochkin tail” bar 11 mm pneumatic rifle. The detachable rings are fixed on the housing 2 steel screws. The height of the sight of the sight is about 3.5 cm. The landing diameter 1 '' or about25.4 mm.

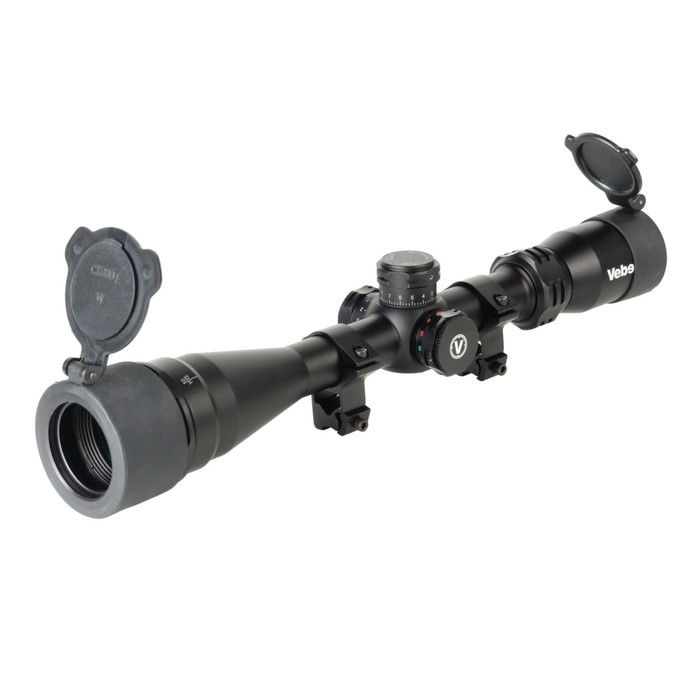

Protection of the eyepiece and lens with spring -loaded folding lids protect the lenses from scratching during transportation.
