Sani Volokushi CenterPlast 1450 with the Lux chipper with lining, 171 x 75 x 56 cm

Technical characteristics:

The size of the sled without a breath:

• without a chipper 1500 x 710 x 260
• with a chipper 1710 x 750 x 560 < /li >

weight sled assembly:

• standard 10.6 kg
• luxury 11.6 kg

carrying capacity Sanya: up to 150 kg

equipment:

• Sani 1 pcs
• Binding 1 pcs
• Dad with the Demop and Rhm- nut 1 pcs

Material: Primary low -pressure polyethylene (PND). The main operational properties:

• strength, plasticity, durability.
• resistance to aggressive media, to organic solvents, to ultraviolet
• retains properties in the range temperatures from -43 ° C to +53 ° C

linings: if you carry heavy loads or travel along asphalt, land, grass - linings are required! This is a consumable that protects the bottom of the sled from abrasion and improves controllability. We compose a sled with two types of linings, depending on the model: 8 mm or 15 mm. All linings on the sled contain graphite to reduce abrasion. Sani with overlays are delivered assembled and ready for use.

• 8 mm linings - with skates, attached to the bottom of the sled to rivets;
• 15 mm linings - without skates, Due to the thickness, they go 2 times longer, attached to the bottom of the sled to self -tapping screws;

metal frame (binding): all over the perimeter a metal frame is attached from a thick -walled pipe, in which there are slinging rings that allow reliably allowing To fix the load. The frame is attached to the sleigh with reliable rivets steel-old.

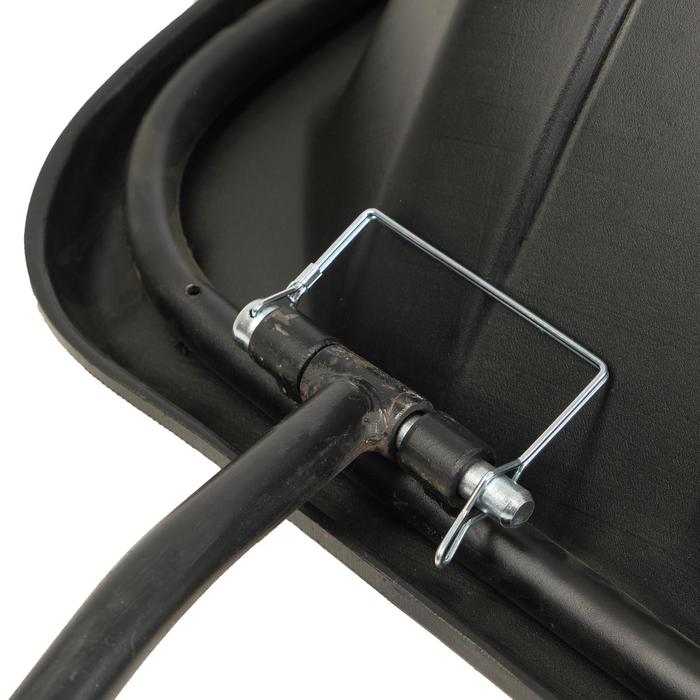

Dad (trailed device): Sani are equipped with a breath of the corresponding size with the damper and the Rym Gayka. Easy installation on quick -detachable codes. Spring damper in the trailer softens softens from place and braking, reducing the load on the transmission of the snowmobile.
