Set for Motoburg: Motoshtorm 150r + ASH-02 + Hammer Office

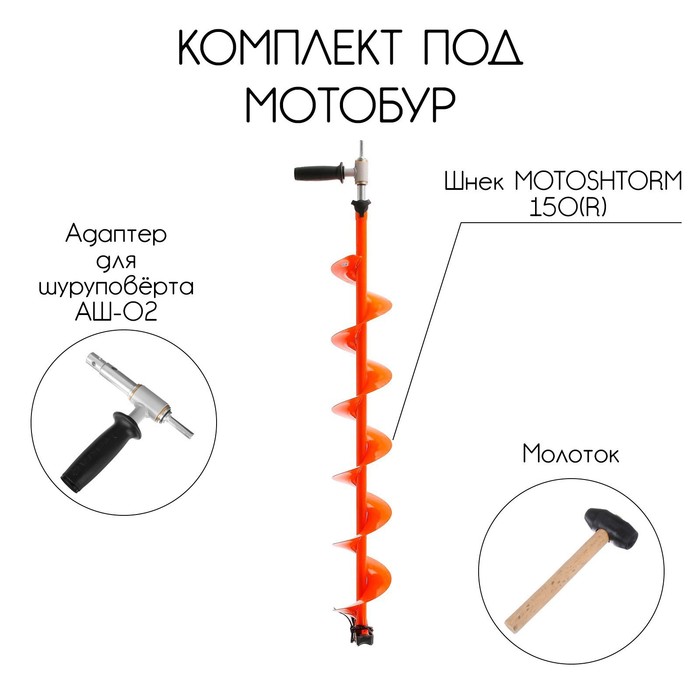

The Motoburg set consists of Motoshtorm 150 (r) with right rotation, ASH-25U adapter and rubberized hammer.

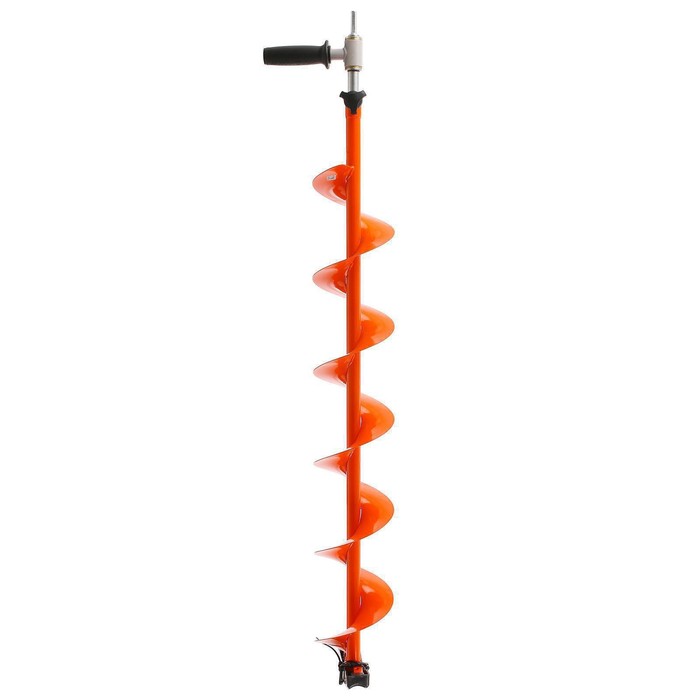

A whole-seated screw with a diameter of 150 mm and right rotation is intended for a comfortable drilling of ice with an electric motor ( screwdriver) in any conditions. The verified angle of attack makes the drilling fast. The reliable polymer coating of orange withstands sharp temperature fluctuations and strong mechanical loads.

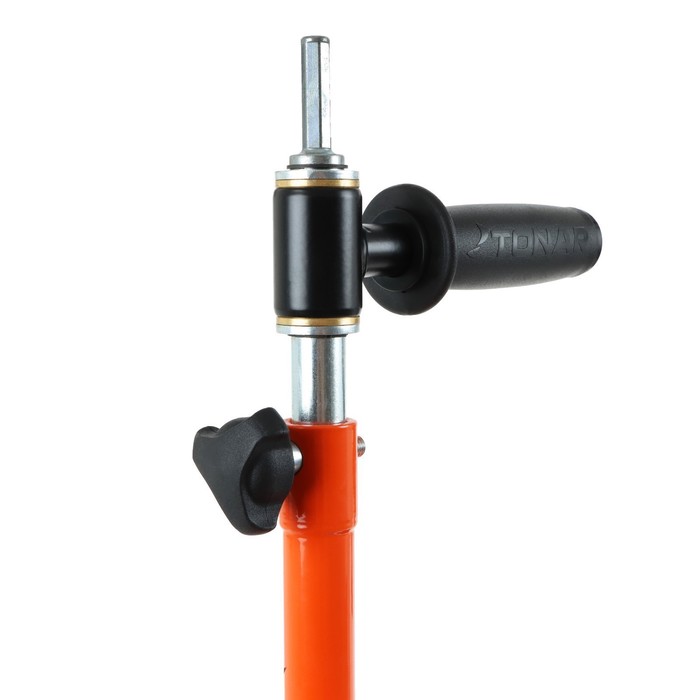

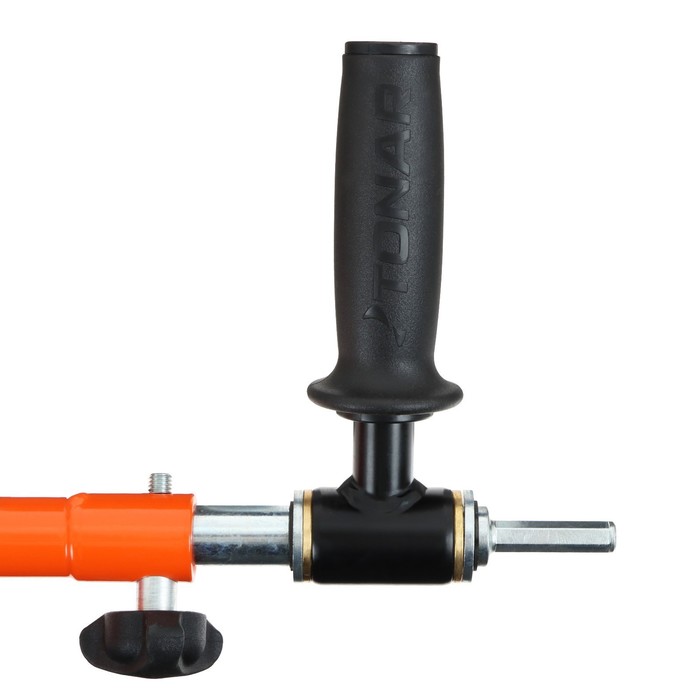

to join the screw to the screwdriver in the kit, there is an adapter with a convenient pen of “warm” non -slip plastic. The adapter used brass bushings that increase the resource of the adapter and exclude the process of boiling metal. To fix the adapter, a screw-bar with a thread M6 is used. The adapter shank is fixed in the cartridge of the screwdriver. It is permissible to operate the adapter with a screwed, 18B voltage and a maximum torque of not more than 100 nm. To lubricate the rubbing nodes of the product, it is necessary to use Litol-24 GOST 21150-87.

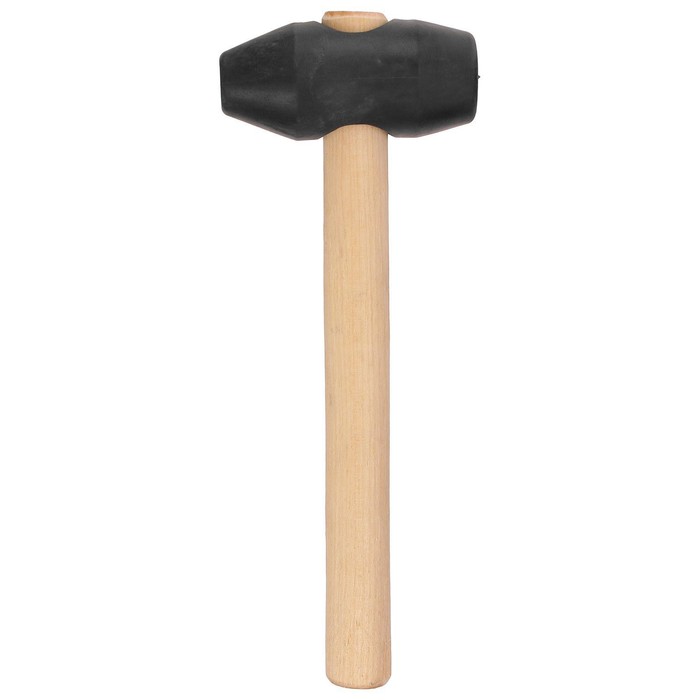

The rubberized hammer is designed to effectively cleanse the product from ice. A comfortable wooden handle does not allow the hammer to slip out of the hands, and the dense rubber shock part beats with ice without damage to the paintwork. Thanks to the depreciation properties of the hammer, a blow to such an instrument is soft and elastic.

Technical characteristics

a snack

• Diameter of drilling: 150 mm.
• drilling depth: 1000 mm.
• Shnek length: 1050 mm.

Adapter

• The diameter of the hole for fixing the screw- lamb: 6.5/8.5 mm.
• The diameter of the output shaft of the adapter: 19 mm/22 mm.
• The length of the adapter: 155 mm.
• Width width. (with a pen): 170 mm.
• Product weight: 600 g.
• Material: steel.

a set of delivery
