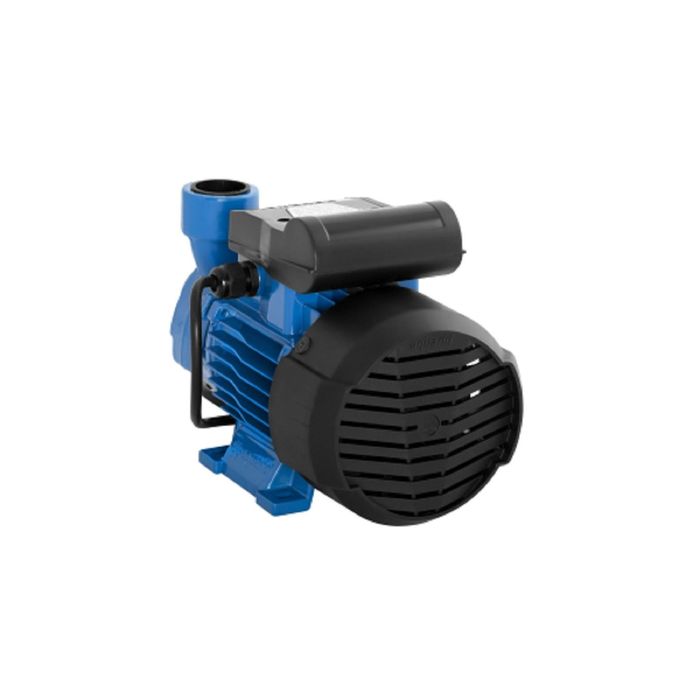

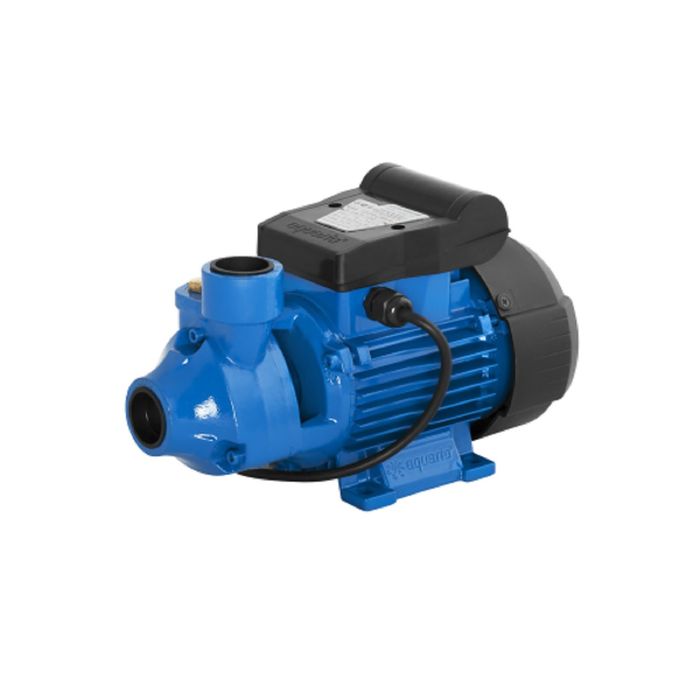

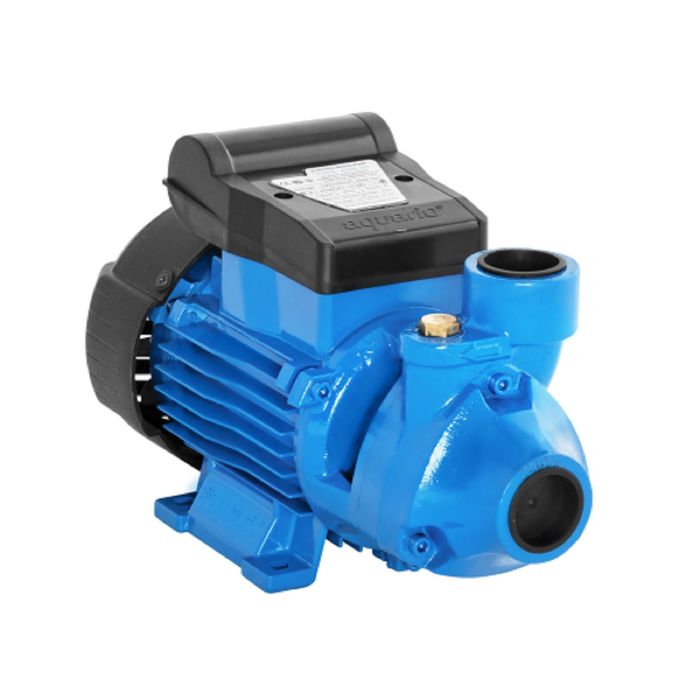

Surface pump Aquario ADB-60, 760 W, 40 l/min, pressure 55 m

Aquario surface pump is used in individual water supply systems for pumping pure cold fresh water from wells, wells, open ponds, etc. This model increases the pressure of the liquid that is made by a very place.

Operational restrictions

• Installation: in a dry ventilated room/in a street in a place protected from direct sunlight and precipitation.
• The maximum absorption height: up to 7 m.
• The maximum allowable pressure in the pump housing: 8 bar.
• Environmental temperature: from +1 to +40 ° C.
• The temperature of the pumped water: from +1 to +60 ° C.
• The maximum size of solid particles in pumped water: 0.1 mm.

The characteristics

• nominal (average) productivity range: 10–35 l/min.
• nominal (average) range of working pressure: 12–42 meters of water column (1.2–4.2 atm.).
• Pump engine: air cooling, single -phase, asynchronous, with a short -closed rotor, trigger capacitor and built -in protective thermal relay.
• Power network parameters: 220 V, 50 Hz.
• The heat resistance class of engine insulation: V.
• Engine protection class: IP44.
• Type of the working wheel: vortex.
• Stator winding material: 100 % copper.
• Material of the core of the stator and rotor: electrical cold steel.
• Material of the pump shaft: stainless steel AISI 304.
• Material of the body of the pumping part: cast iron with brass inserts.
• Workwap material: brass.
