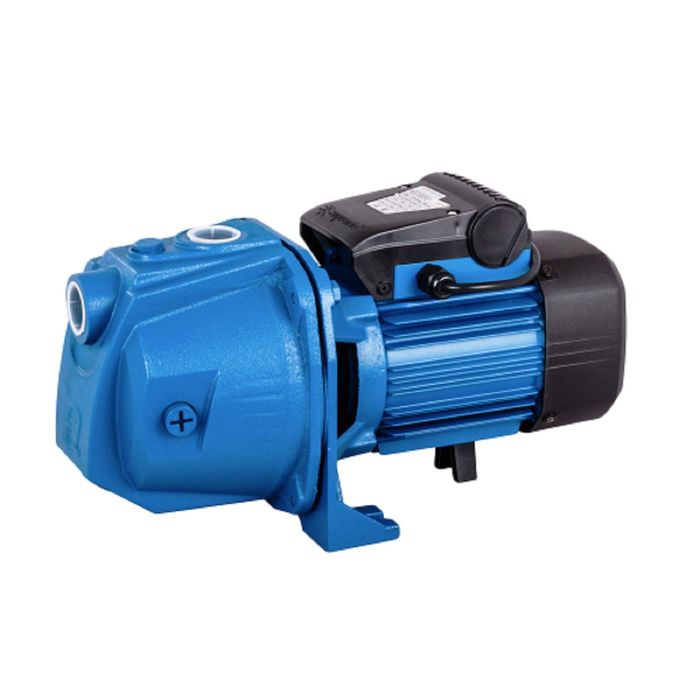

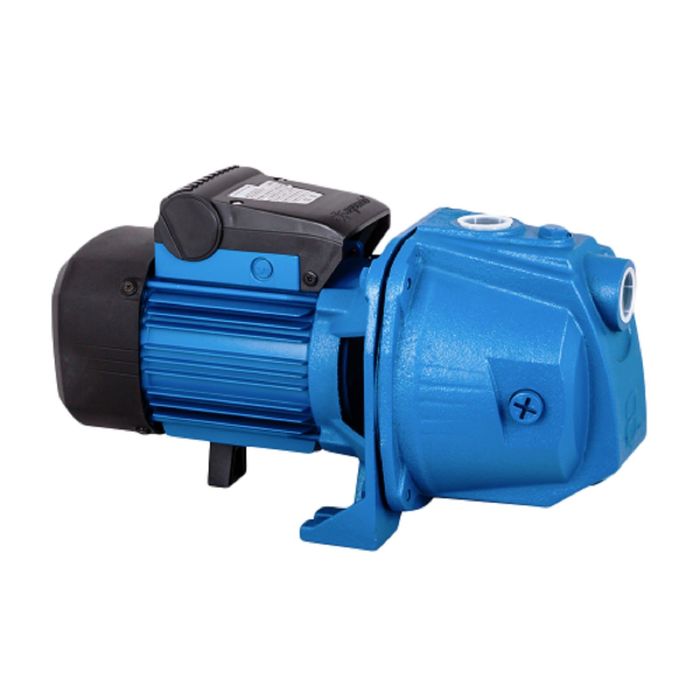

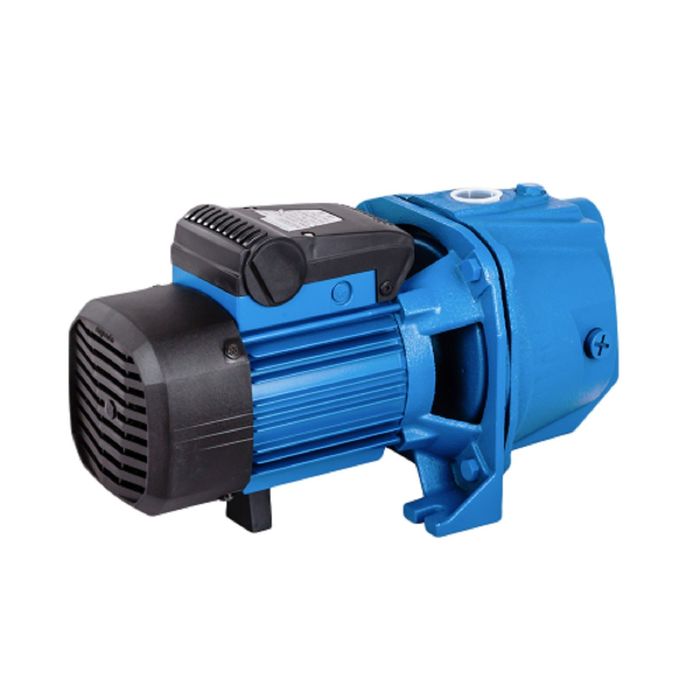

Surface pump Aquario AJC-101, Cast iron, 1000 watts, 55 l/min, pressure 52 m

Aquario's surface centrifugal pump is used in individual water supply systems for pumping pure cold fresh water from wells, wells, open ponds, etc. This model was created for domestic use.

Operational restrictions

• Installation: in a dry ventilated room/in a street in a place protected from direct sunlight and precipitation.
• Number voltage: 1 × 220 V (+6/−10 %). from +1 to +40 ° C.
• Environmental temperature: from +1 to +40 ° C.
• The maximum size of solid particles in pumped water: 1 mm.
• The maximum pressure of the water in the case is safe for the pump: 8 atm.
• The maximum number of launches: 30 per hour.

The characteristics

• Pump engine: air cooling, asynchronous, with a short -closed rotor, a starting condenser and a built -in protective thermal relay.
• The heat resistance class of engine insulation: V.
• Engine protection class: IP44.
• Type of the working wheel: centrifugal, exit.
• Workwap material: brass.
• Design features of the hydraulic part: diffuser and internal ejector.
• Material of diffuser and ejector: technopolymer.
• Stator winding material: 100 % copper.
• Material of the core of the stator and rotor: electrical cold steel.
• Material of the pump shaft: stainless steel AISI 304.
• Material of the body of the pumping part: cast iron.
