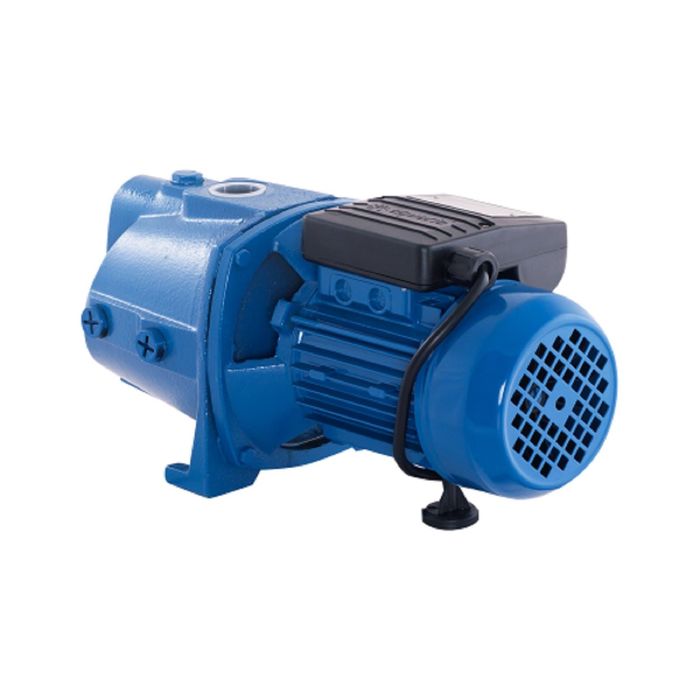

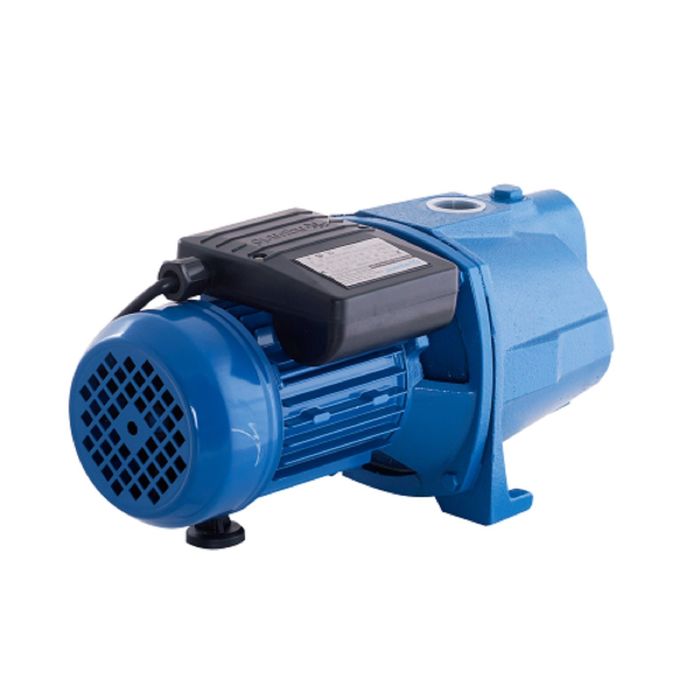

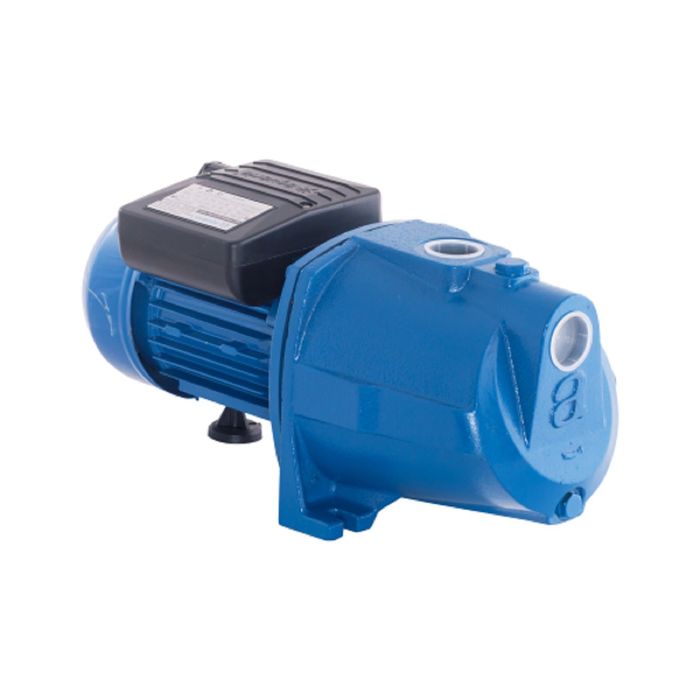

Surface pump Aquario AJC-60C, Cast iron, 550 W, 40 l/min, pressure 38 m

Aquario surface pump is used in household water supply and gardening systems for pumping pure water from wells, wells and open ponds. This model increases fluid pressure, which is acted by a self.

operational restrictions

• maximum absorption height: up to 8 m.
• The maximum allowable pressure in the pump housing: 8 bar.
• The temperature of the pumped liquid: from +1 to +40 ° C.
• Environmental temperature from +1 to +40 ° C.

characteristics

• nominal (average) performance interval: 10-30 l/min.
• nominal (average) interval for working pressure: 15–32 meters of a water column (1.5–3.2 atm.).
• Pump engine: air cooling, asynchronous, with a short -closed rotor, start -up capacitor and built -in protective thermal relay.
• The heat resistance class of engine insulation: V.
• Engine protection class: IP44.
• type of work wheel: centrifugal.
• Design features of the hydraulic part: diffuser and internal elongated ejector.
• Material of diffuser and ejector: technopolymer.
• Stator winding material: 100 % copper.
• Material of the core of the stator and rotor: electrical cold steel.
• Material of the pump shaft: stainless steel AISI 304.
• Material of the body of the pumping part: cast iron.
• Workplace material: Technopolymer.
