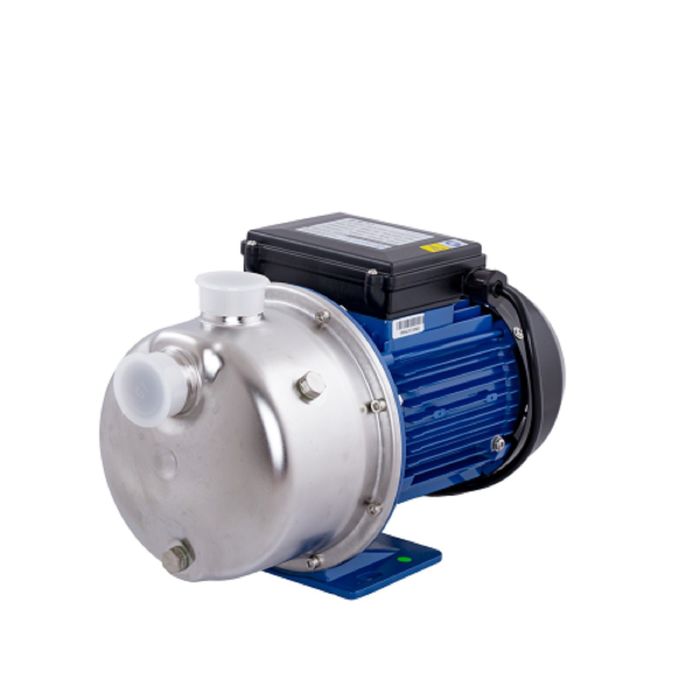

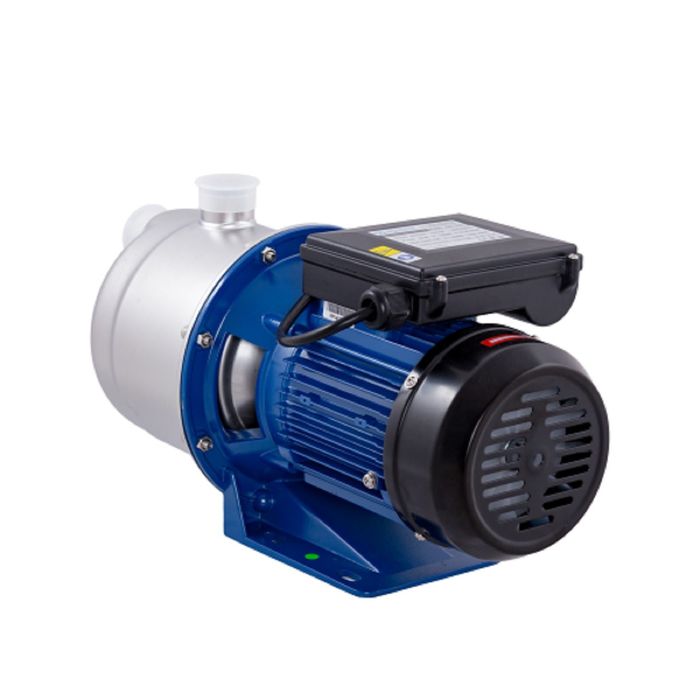

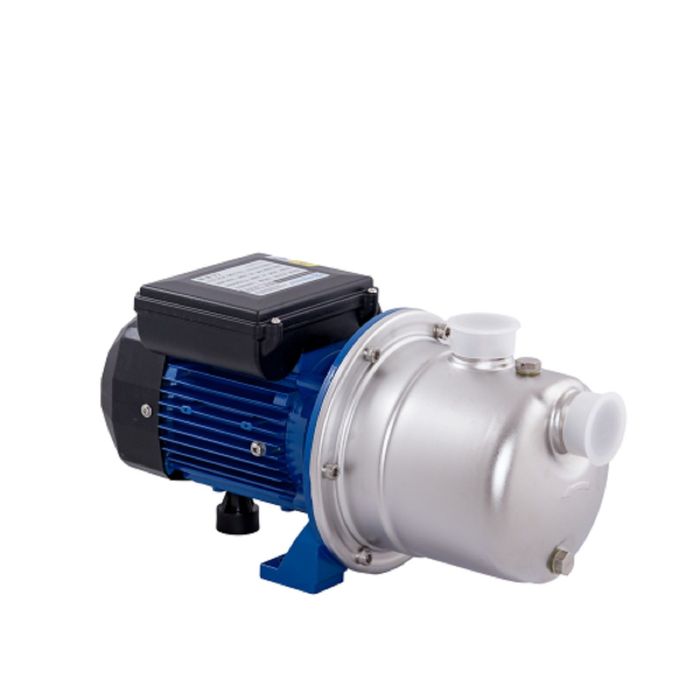

Surface pump Aquario AJS-100A, 1000 watts, 60 l/min, pressure 50 m

Aquario's surface centrifugal pump is used in individual water supply systems for pumping pure cold fresh water from wells, wells, open ponds, etc. This model was created for domestic use.

Operational restrictions

• Installation: in a dry ventilated room/in a street in a place protected from direct sunlight and precipitation.
• Number voltage: 1 × 220 V (+6/−10 %). from +1 to +40 ° C.
• Environmental temperature: from +1 to +40 ° C.
• The maximum size of solid particles in pumped water: 1 mm.
• The maximum pressure of the water in the case is safe for the pump: 8 atm.
• The maximum number of launches: 30 per hour.

The characteristics

• Pump engine: air cooling, asynchronous, with a short -closed rotor, a starting condenser and a built -in protective thermal relay.
• The heat resistance class of engine insulation: F.
• Engine protection class: IP55.
• Type of the working wheel: centrifugal, exit.
• Workplace material: stainless steel AISI 304.
• The design features of the hydraulic part: diffuser and internal ejector.
• Material of diffuser and ejector: technopolymer.
• Stator winding material: 100 % copper.
• Material of the core of the stator and rotor: electrical cold steel.
• Material of the pump shaft and body of the pumping part: stainless steel AISI 304.
