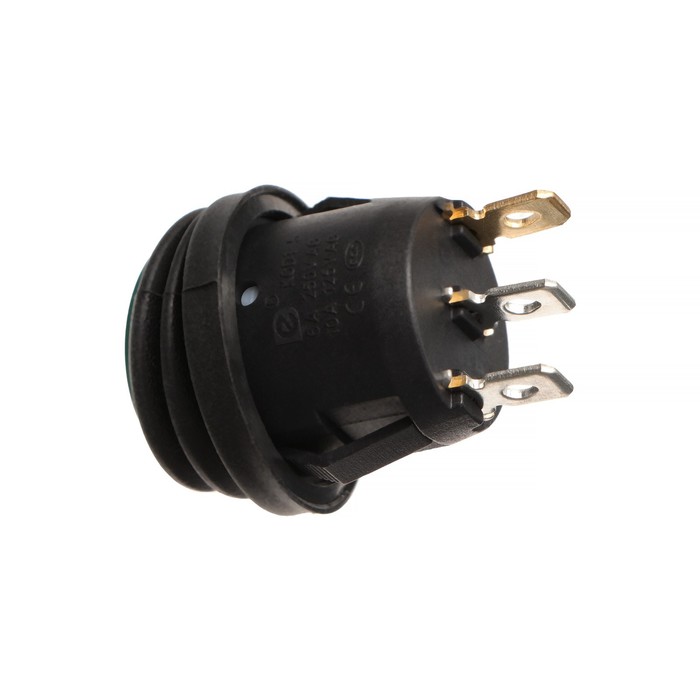

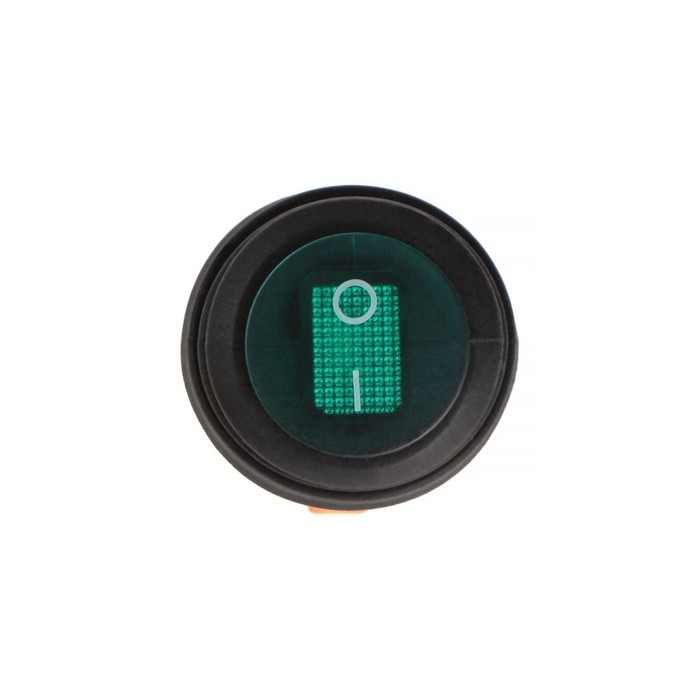

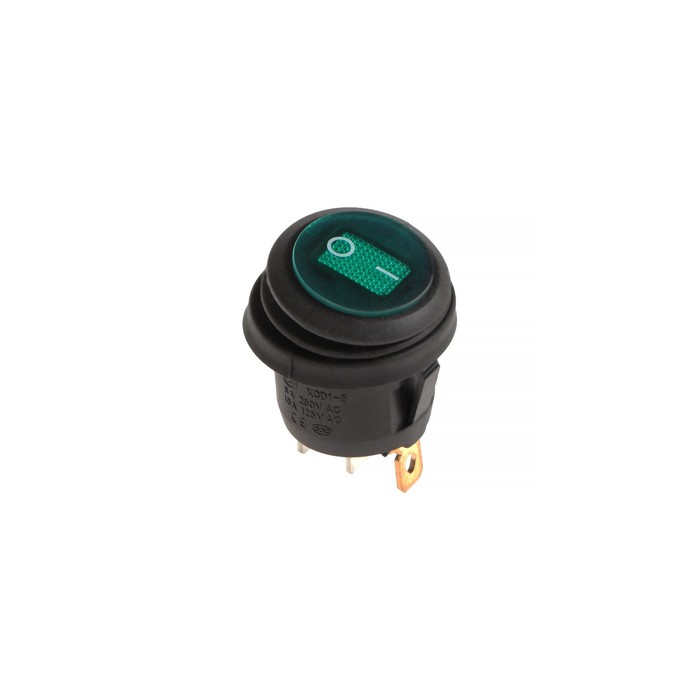

Switch moisture -proof round green with backlight, 250 V, 6 A, 3 contacts

The switch is designed to switch electrical alternating currents with a voltage up to 250 in in conditions of high humidity. The keyboards (rocker) switches are used as components of various electrical equipment (in network filters and extension cords, audio equipment, power supply, electrical installations in various industries and many other places). The protective shell of the key provides moisture and dust protection of the switching mechanism. Such a keyboard switch has two provisions. The principle of action is based on moving the key to one of the positions. To switch to the right position, you need to make some efforts to the key. Installation is carried out without the use of screws on flat panels with a thickness of 0.8 mm to 3 mm. Contact connection is carried out by a flat terminal or using soldering.

characteristics:

• Nominal voltage: 250 V;
• Maximum voltage: 1,500 VAS no more than 1 minutes;
• nominal current: 6 a (250vac);
• Contact resistance: not more than 35 MOM;
• Type of switching: on-off;
• Number of contact groups: 1;
• The number of contacts in the contact group: 3;
• Fixation of the provisions: yes;
• indicator of the switching provisions: green;
• working temperature: from -25 ℃ to +85 ℃;
• degree of protection (IP): IP51;
• resource: 10,000 cycles.
