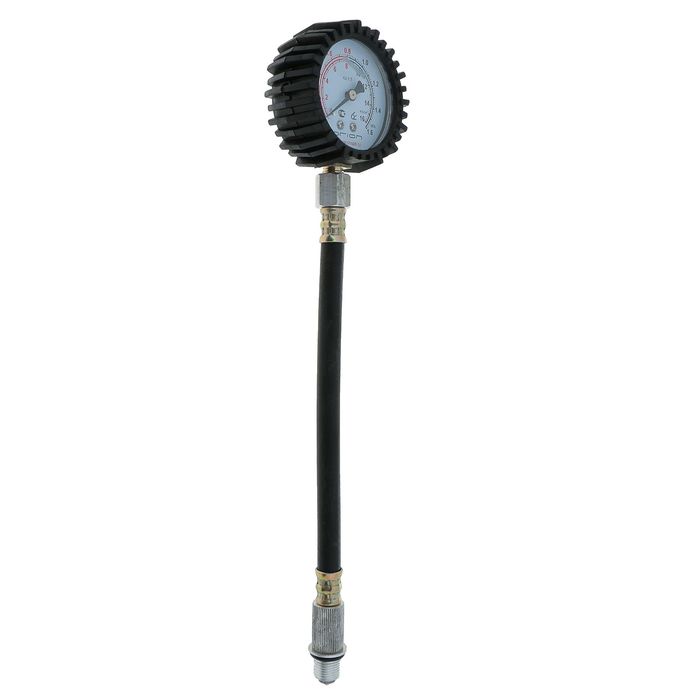

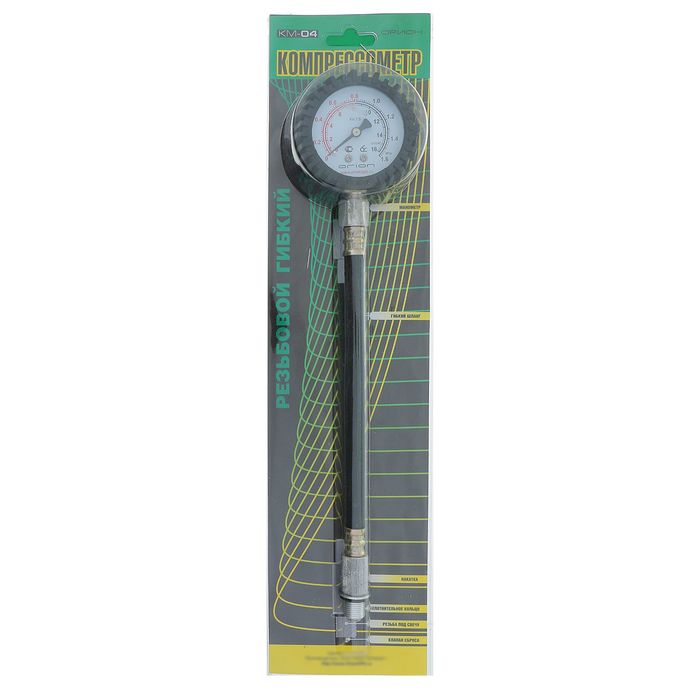

The compressometer of the threaded KM-04, for gasoline engines, flexible

The KM-04 compressometer is designed to measure and control the compression in the cylinders of gasoline internal combustion of cars, trucks and motorcycles. Measurements are carried out on a heated engine, through holes for spark plugs. The main feature of the compressometers of Orion KM-04 is the use of a flexible hose, which allows you to measure compression in the engine without dismantling the elements that make access to the openings of candles. This design creates additional convenience when working with compressometers.

Characteristics:

• The range of air pressure in the engine cylinders: 0-1.6 mPa (0-16 kg² )
• Manometer division price: 0.02 MPa (0.2 kg/cm²)
• operating temperature range: -40 ° C -+60 ° C
• Thread diameter (mm): 14x1.25

Construction:

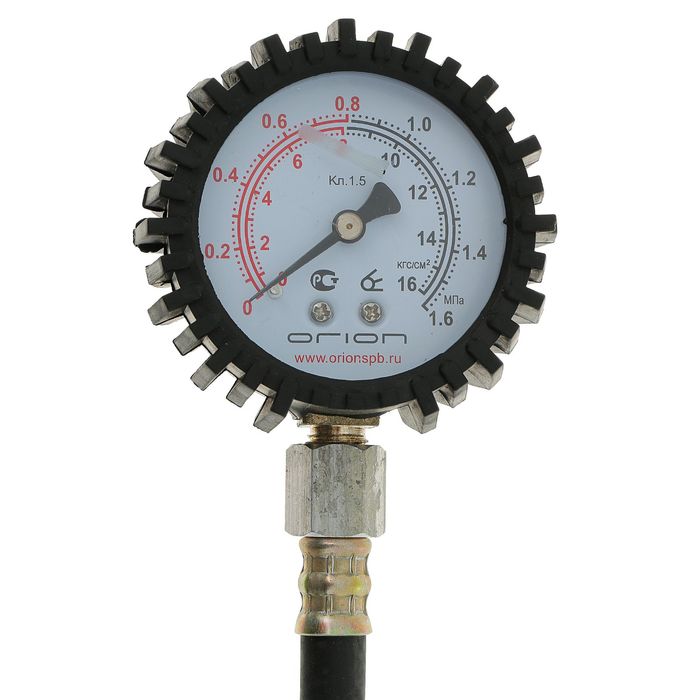

• manometer
• sealing laying for the manometer
< Li> Flexible hose with a candle thread
• sealing ring
• Drown valve with the possibility of discharge (Soldier GOST 8107-75)
