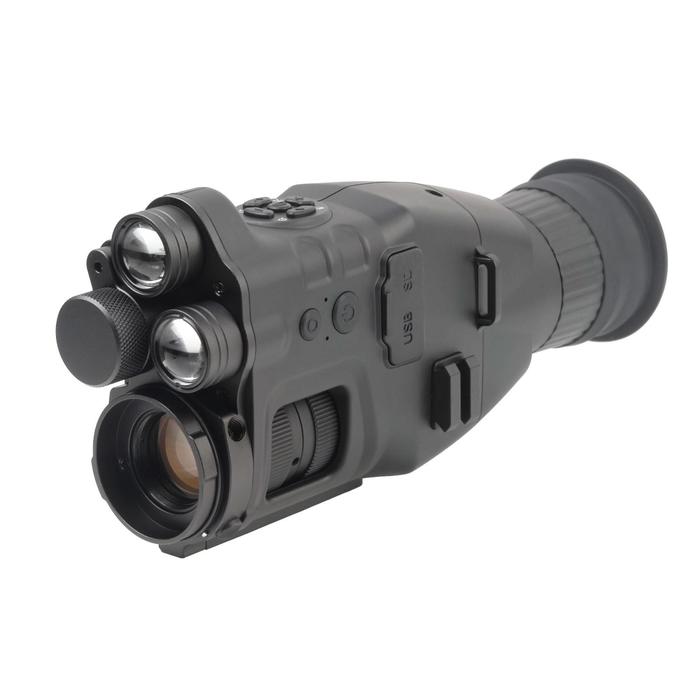

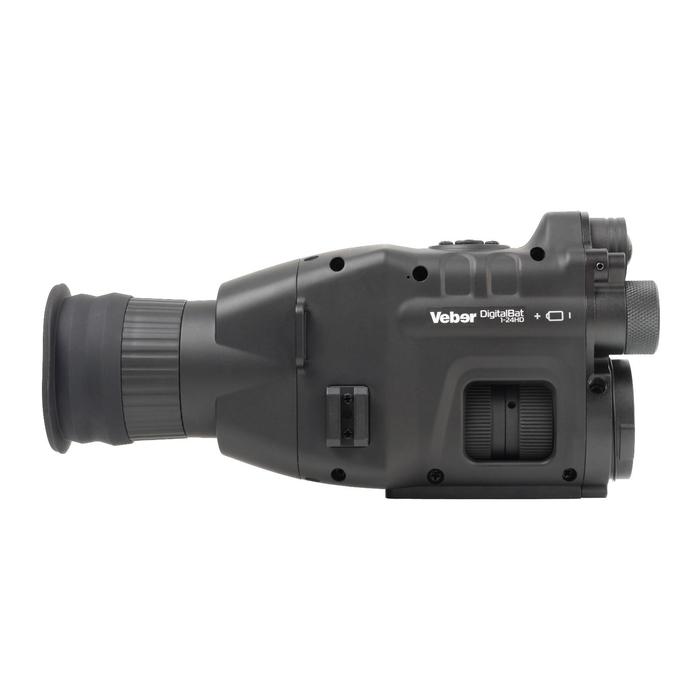

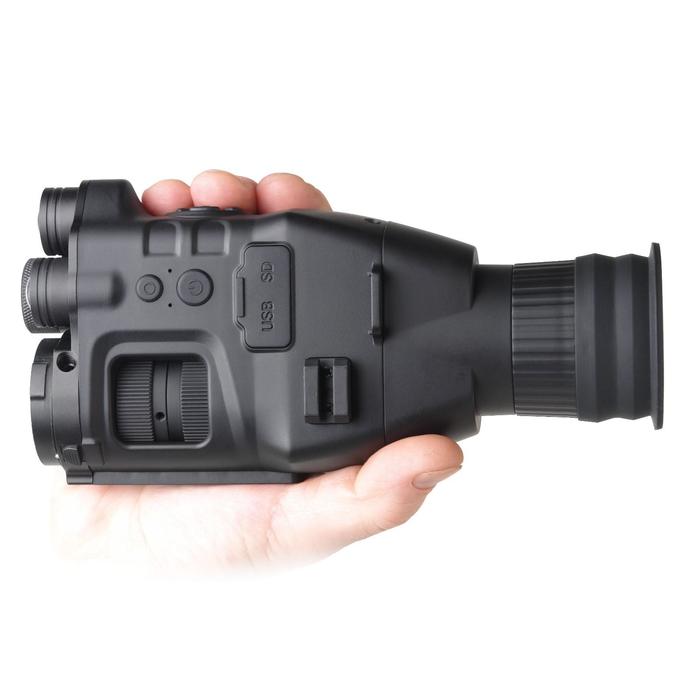

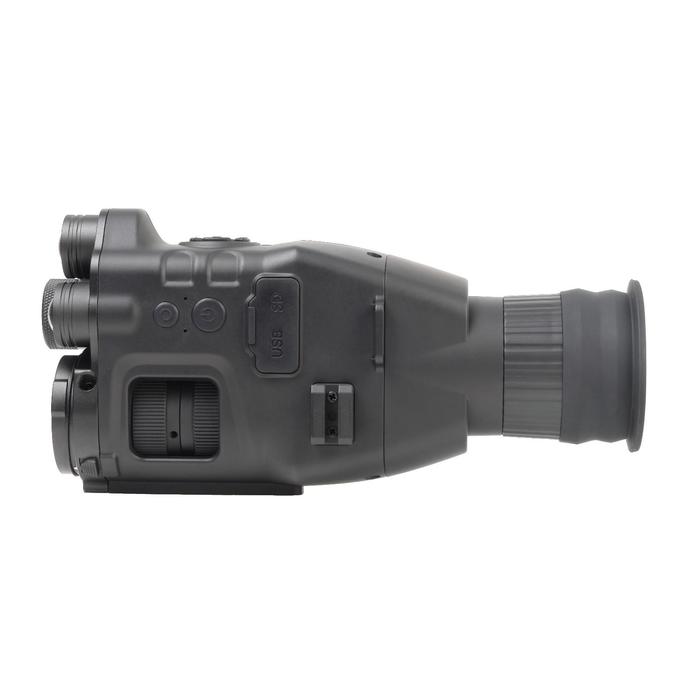

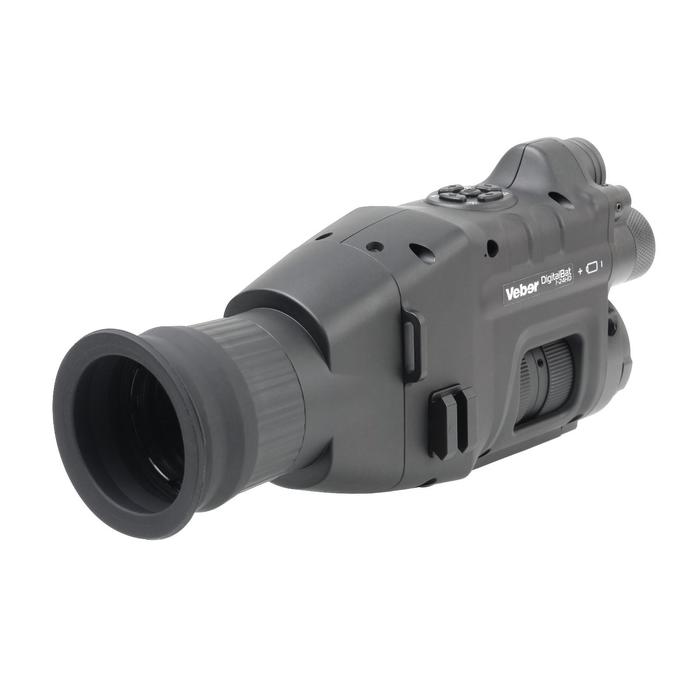

The digital Veber Digitalbat 1-24HD sight, multifunctional

Veber Digitalbat 1-24HD is a multifunctional digital device that can be used as an independent digital sight of day and night vision, as a monocular or as a night nozzle for an optical sight.

The digital sight of the night vision VEBER Digitalbat 1-24HD with two IR fans is designed for observation and aiming at medium distances at any level of illumination.

an increase to 24x is provided by an optical zoom of 1-8x and a digital zoom of 1-4x, with a minimum focus distance of 3 cm. The adjustment of an optical increase is carried out by rotation of a zuming ring on the sight of the sight. The multiplicity of the digital increase changes by pressing the corresponding keys on the sight of the sight. You can use additional digital zoom in the entire range of increase.

The device gives a clear detailed color image in daytime mode and a contrasting black and white picture at night. The range of the object in the total darkness is up to 400 m.

digitalbat is installed on various types of firearms of 12–32 caliber with a standard Weaver mount with a shot of a shot up to 4400 J.

Color ocular LCD display 2.5 ''

The multifunctional device VEBER Digitalbat 1-24HD uses a color fulfill display 2.5 '' with a resolution of 800x480 pixies. Excellent image quality without distortion provides a large range of detection and recognition.

The brightness of the display is selected in 4 stages of adjustment for comfortable long -term observation.

Built-in IR Far and Nearby Foundation

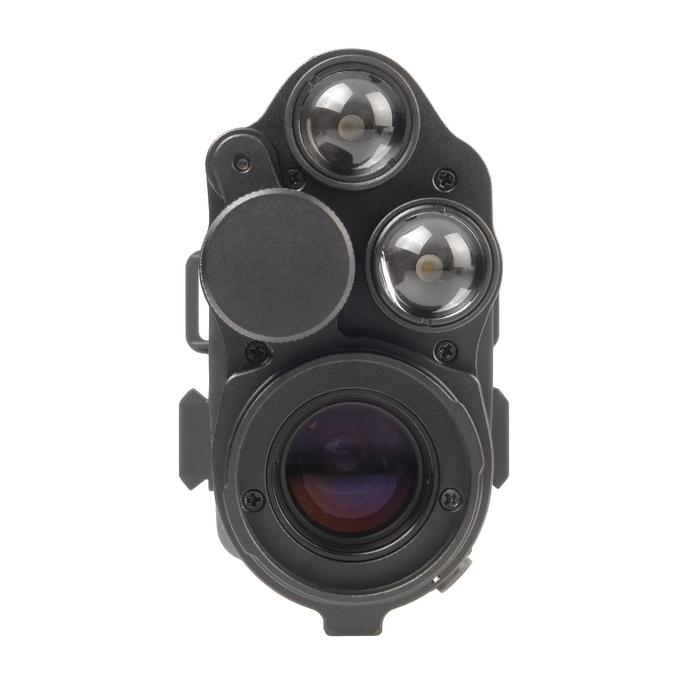

Two focusing LED lamps of IR output with a wavelength of 940 and 850 Nm are built into the sight of the sight. Free switching between the two IR fans will allow you to continuously lead the target throughout the distance.

IR Fonar “invisible” spectrum of 940 Nm can be used at close distances and is invisible to the eye of a person or animal. At long-distance distances, an IR background is effectively used in a 850 nm spectrum.

It is possible to choose one of the five steps of power, which makes it possible to choose the optimal intensity of the backlight in a specific observation situation.

built -in LCA

The laser target designator (LCU) illuminates the target for the shooting and at the near distance. Laser power 3.0 MW, wavelength 635 Nm, color is red. The laser is not dangerous if you look at it with the naked eye of a short -term period and not look through optical devices.

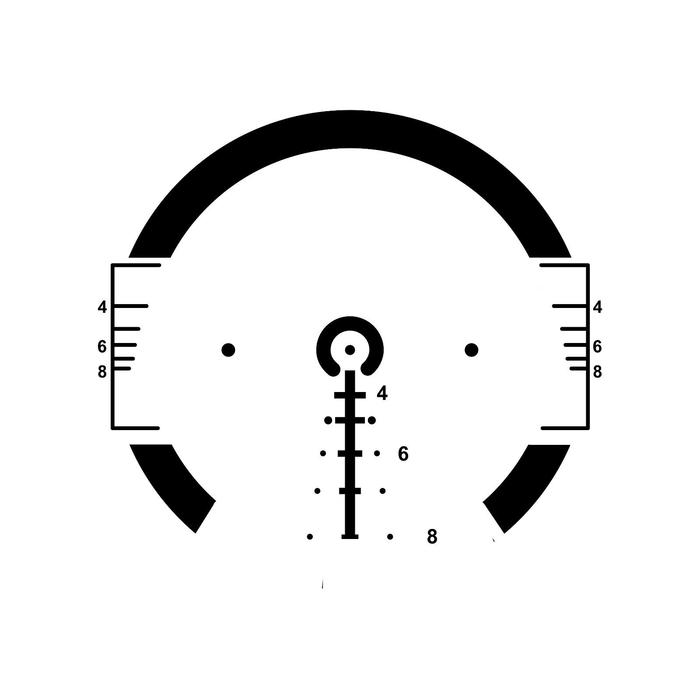

7 aiming nets in 4 color performances

The user can set one of the 7 tactical aiming nets or the “without grid” mode for various shooting or observation conditions. For each grid, color is selected - red, green, black, white.

For ease of use, together with daylights with their own aiming grid, the target grid mode can be hidden from the digital device menu. Read about the methods of activation of the regime in full operating manual.

Photo and video recording

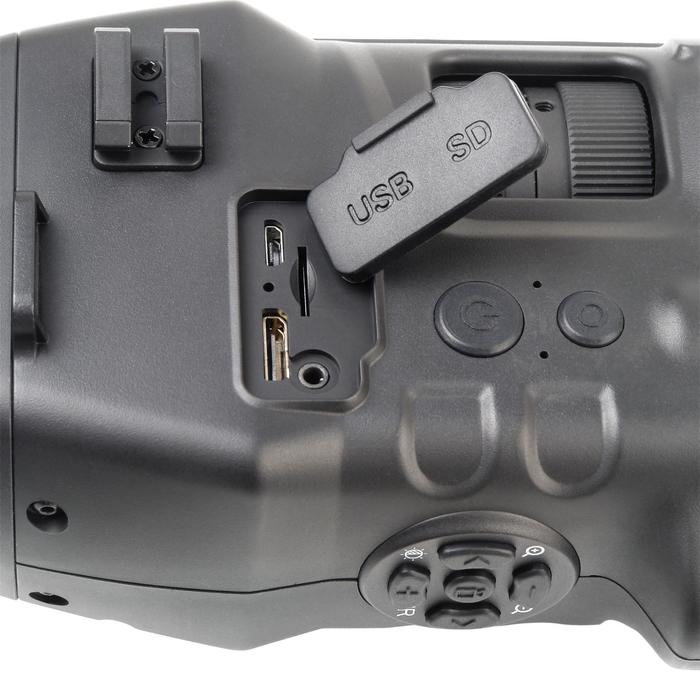

The Veber Digitalbat 1-24HD digital sight with a built-in videoReraxer can record photos and videos of 30 frames/s with sound. The target supports Micro SD cards with a memory volume of up to 128 GB, purchasing which you get the opportunity to keep photo and video and store a record with a resolution of 1080p. Keep personnel without being distracted from observations.

Multifunctional buttons and easy access to the sight settings

The sight is controlled by pressing multifunctional corrugated rubber buttons that give easy access to the device settings.

The buttons perform various functions depending on the duration of pressing and the mode of operation of the sight. They are located in such a way as to quickly find the desired function even by touch in the dark.

Connection with a wi-fi smartphone

The VF CAM application helps to transmit the image from the memory of the sight by Wi-Fi and display on the screen of a smartphone or tablet. The observer sees a clear picture in real time on the screen of a mobile device, and also gets the opportunity to record photos and videos directly in the memory of the smartphone.

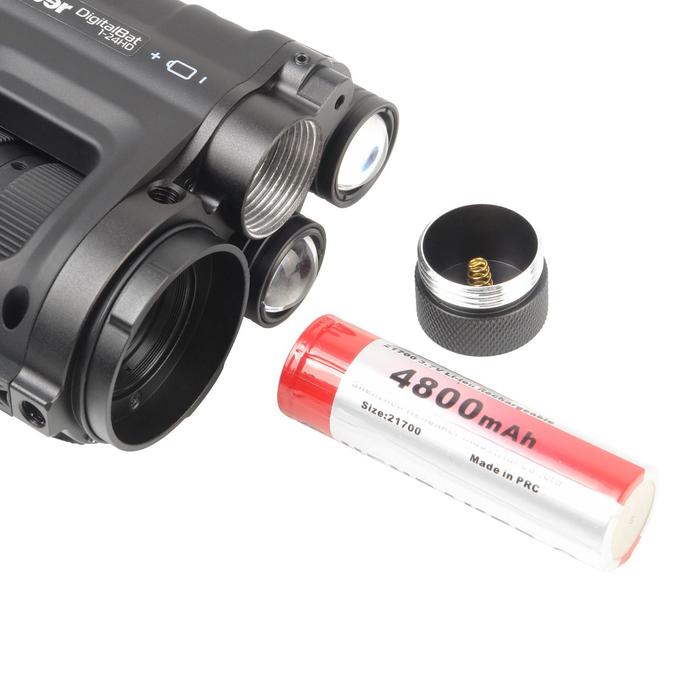

up to 10 hours of continuous work

A night vision sight is powered by a standard LI-Ion Battery of the 3.7V type 21700 or an additional acquired battery of type 18650 (through a complete adapter). The device is distinguished by a long time for up to 10 hours after complete charging in normal operation or up to 4 hours in night vision mode.

The battery charge can be connected by a digital sight using a USB - Micro USB cable to a standard network adapter (not included) or Power Bank.

To save the battery charge, the automatic shutdown mode is provided for the device power after 3 minutes, 5 minutes, 10 minutes, which can turn off.

Okular Linza Corrector

The kit includes a corrective lens for people with features of vision (farsightedness). The lens is installed in an eyepiece to increase the multiplicity if there is a fuzzy image of screen characters. Correcting lens is placed on a special seat on top of the standard lens. Before installation, it is necessary to turn the blockage as much as possible in order to free up the seat.

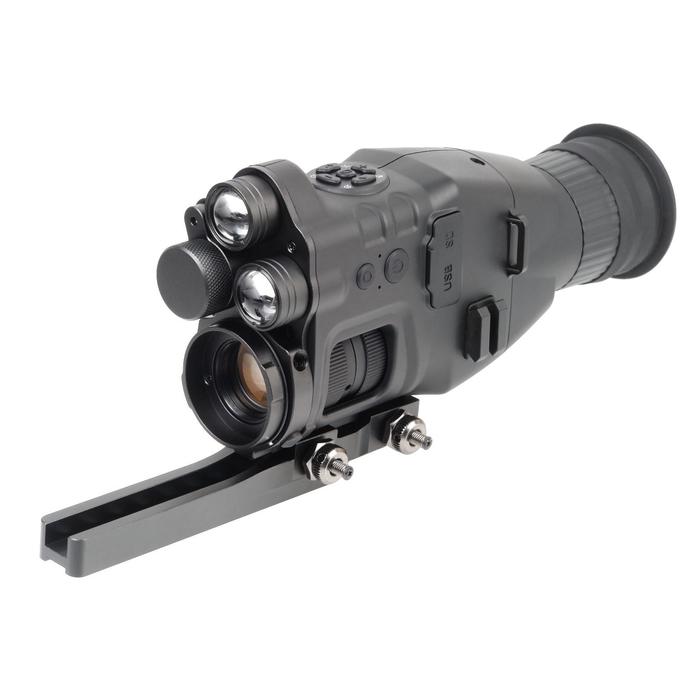

Weapon installation

Veber Digitalbat 156S bracket helps to set a digital sight on a weapon equipped with Weaver/Picatinny type with a width of 11 to 21 mm and a length of 60 mm.

The total length of the bracket is 156 mm. The distance between the centers of the screws fixing the bracket on the bar is 40 mm. The bracket is made of aluminum alloy.

A number of fasteners help to choose the correct position of the installed sight on different types of weapons.

The Kronstein device uses a reliable locking mechanism with a lock from random opening.

It is possible to additional purchase of the Veber Digitalbat 156S bracket, for example, to use one Veber Digitalbat 1-24HD device for various types of weapons.

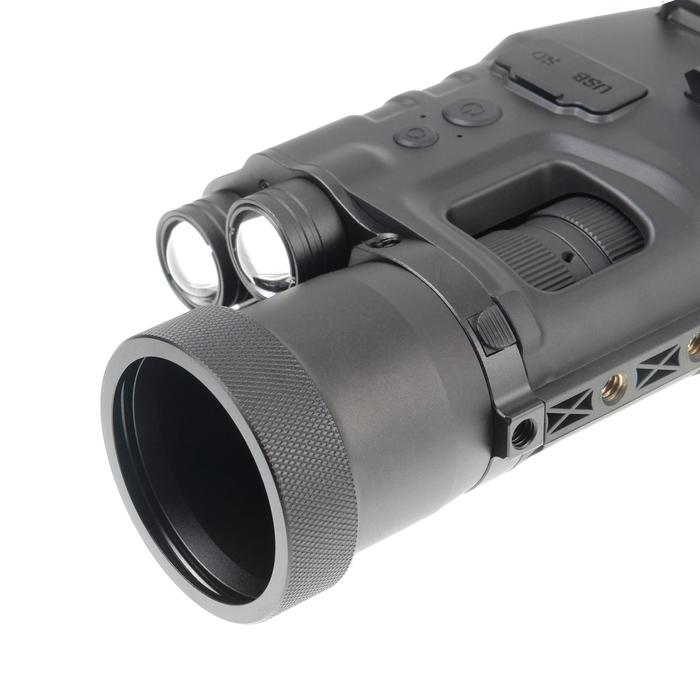

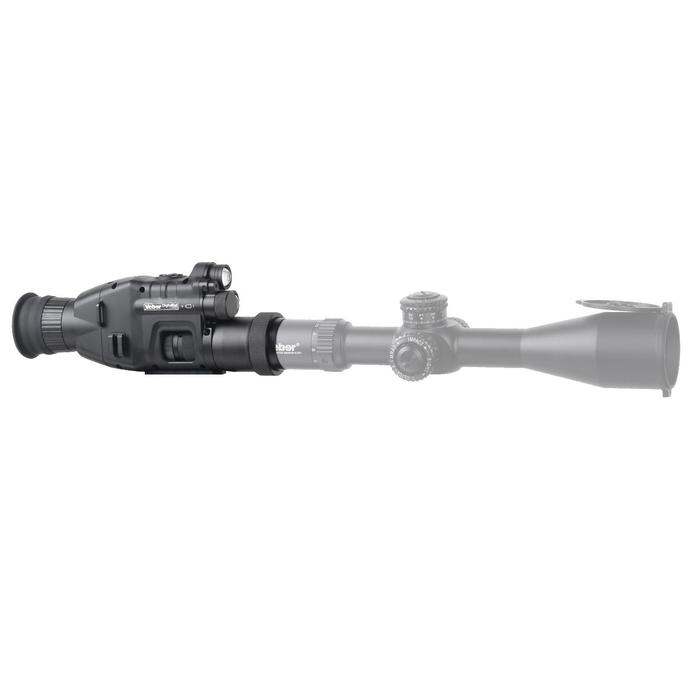

Installation on the daily sight

VEBER Digitalbat 1-24HD can be installed on daylights using a standard adapter adapter with a byone mount.

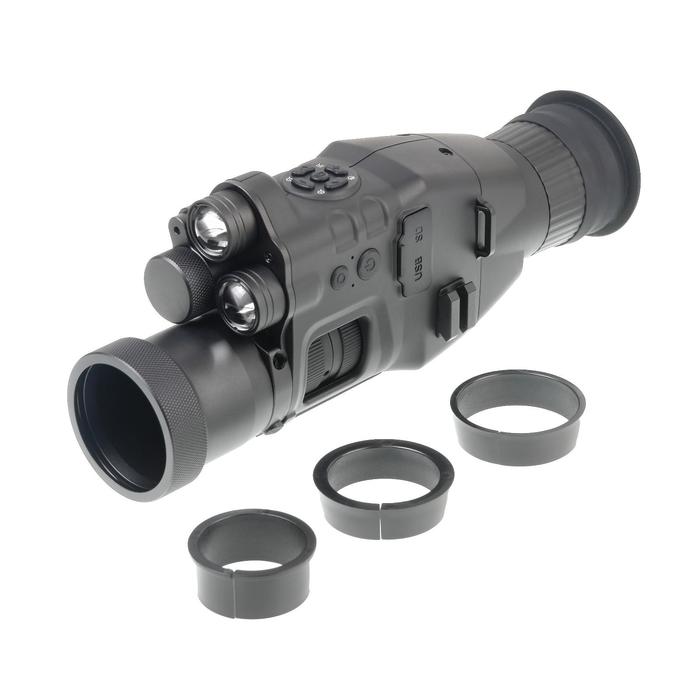

The object of the night vision sight is connected to the eyepiece of the optical device by a transition ring with a suitable nylon lodge ring with an inner diameter of 35/39/43.5mm.

For installation on sights with eyepieces of other sizes, transition rings are additionally purchased - the transitional ring Veber Digitalbat RA 42, VEBER DIGITALBAT RA 45 or VEBER DIGITALBAT RA 48.

Installation on a tripod

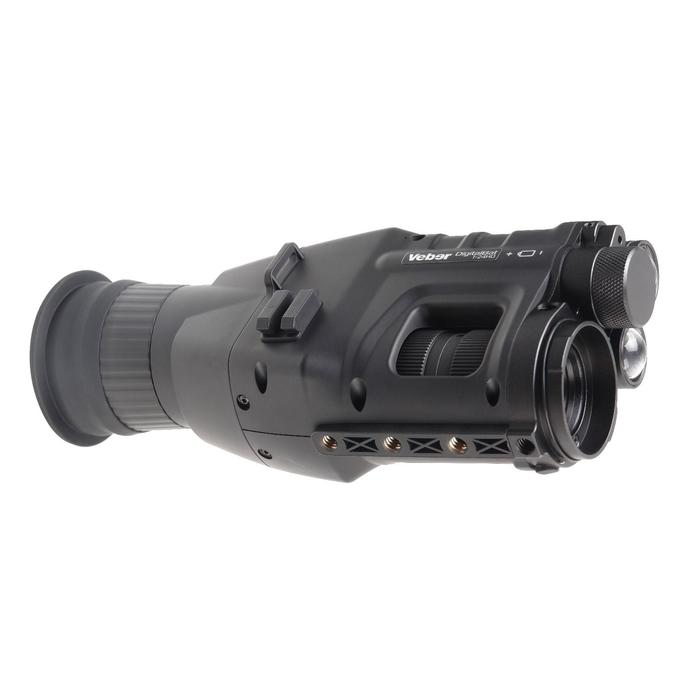

When a multifunctional sight is used for long -term observations as a monocular, it is possible to install a dope with a standard thread of 1/4 inches. To do this, a metal bar with four corresponding threaded holes is installed in the lower part of the case. The monocular, installed on the tripod, is not subjected to the effect of the “Sheverene”, reduces the load on the eyes and unloads the hands of the observer.

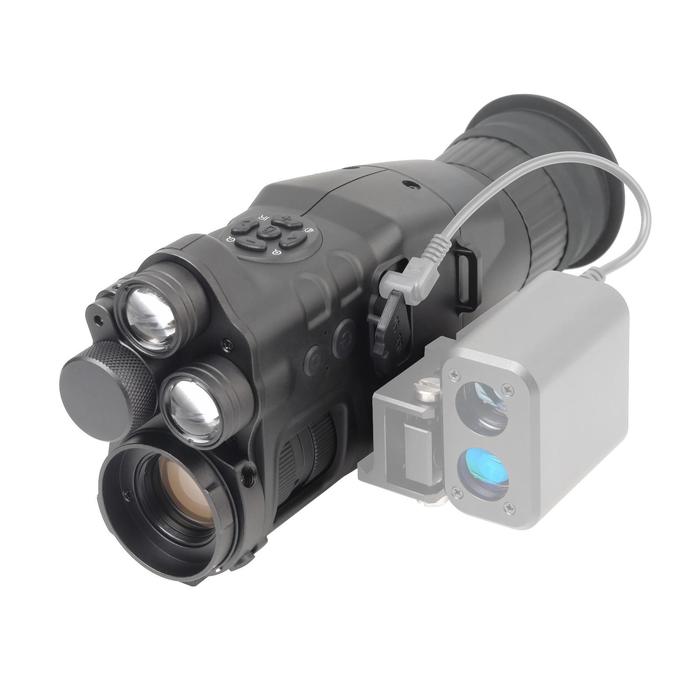

Fixing additional equipment

On the sight of the sight on both sides, there are Weaver mounting databases for installing additional equipment. For example, Veber Digitalbat LR 600 or Veber Digitalbat LR 700 laser rangefinder. The range finder continuously transfers information about the distance to the target and does not distract the arrow from observations.

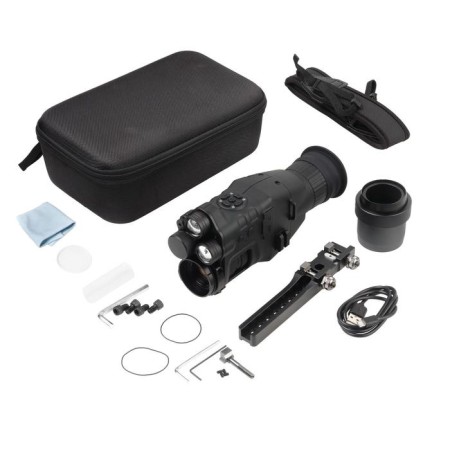

Storage Case

storage Case and the installation of the device protects against damage and loss of components.
