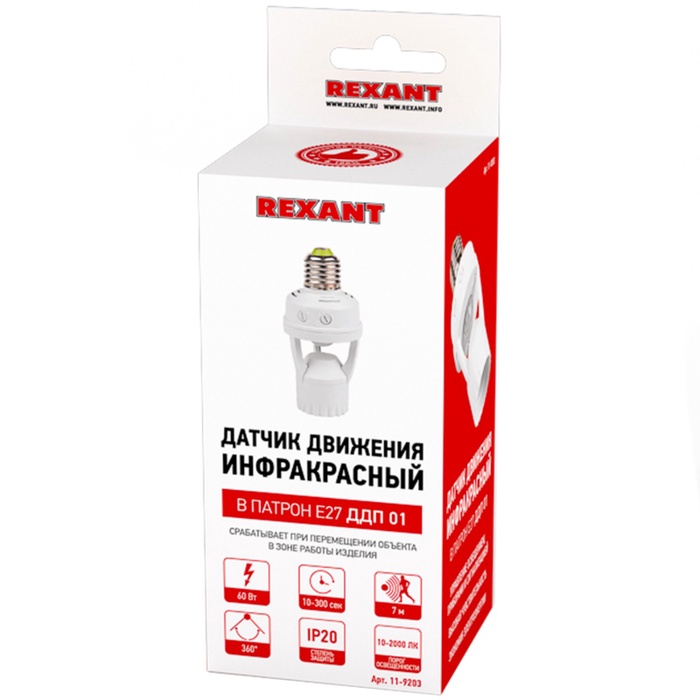

The movement sensor in the cartridge E27 DDP 01, 360 °, 60W, 3-2000lk, 6m, 10-300 sec. Rexant

The sensors are designed to automatically turn on and off the load in a given time interval, depending on the presence of moving objects in the sensor detection zone and light level. The principle of operation of infrared motion sensors is to detect changes in infrared (thermal) radiation of surrounding objects.

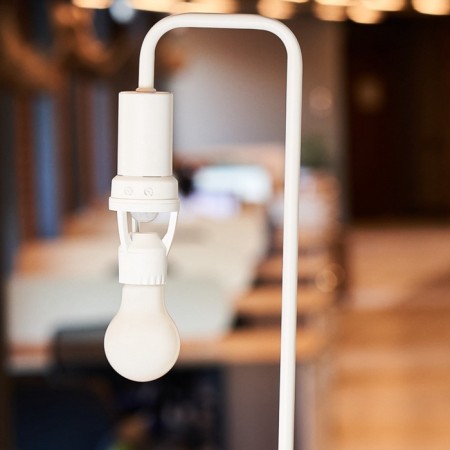

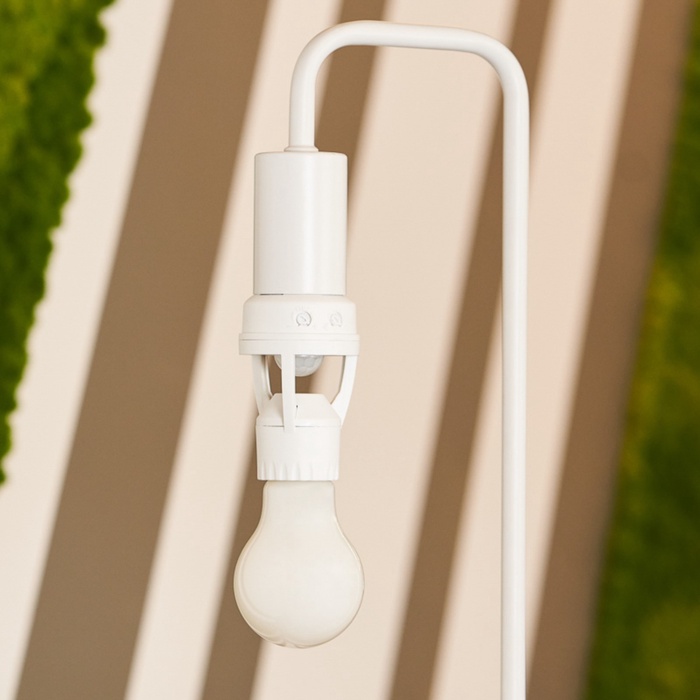

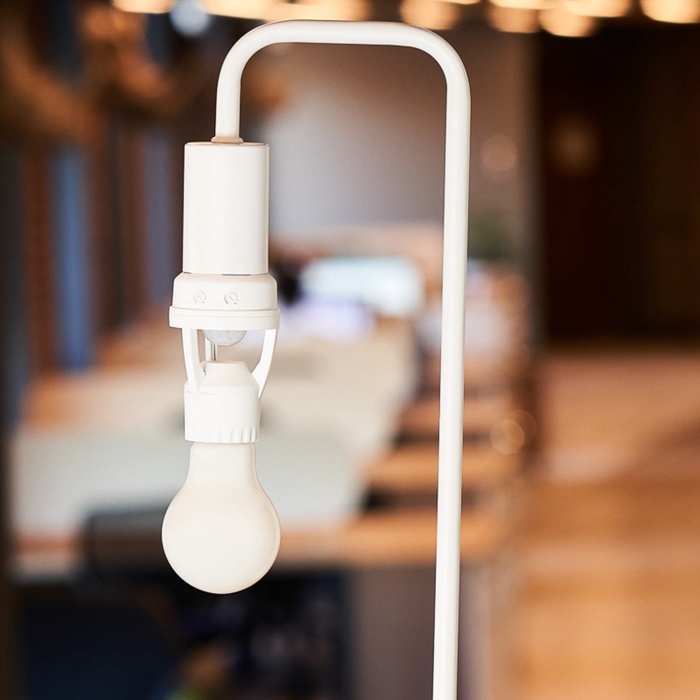

Each object that has a temperature emits infrared radiation, which through the lens system or special concave segmented mirrors falls on the sensitive movement inside the motion sensor The sensor registering this. The lamp in the cartridge will turn on which side you would not go into the room.

Viewing angle: 360 °

Voltage: 230 V/50 Hz

Power : 60 W

Lighting threshold: 3-2000 lc

range: up to 6 m

Ending to inclusion: 10-300 sec

The operating temperature range: –25...+40 ° C

degree of protection: IP20

weight: 0.8 kg
