The voltage stabilizer "Energy" ASN-12 000, with a digital display

Relay single -phase alternating current voltage stabilizer is designed to stabilize alternating voltage in the power supply network for consumers of domestic and similar purpose. The product belongs to the class of autotransformer stabilizers with stepped voltage regulation by switching the withdrawal of the power autotransformer using electromechanical power relay, so stabilizers of the ASN energy regulate the voltage according to the relay principle.

He has such undoubted advantages as compactness and an expanded lineup. The stabilizer is equipped with a microprocessor that provides the speed of switching the relay 2-4 times faster than other relay stabilizers. The self -testing unit and intellectual programmable protection significantly increase reliability and extend the service life of the stabilizer. The power of stabilizers ASN energy reaches 20 kVA, while even a high -power model is easily placed in a small space. The output voltage of the stabilizer is automatically maintained in the range of values ​​from 207V to 233V, which meets the requirements for the maximum permissible values ​​of the power voltage of power supply in accordance with GOST 13109-97 “Electric quality norms in electricity systems”.

Attention!

The product can be connected only by qualified personnel with a third electrical safety group with a tolerance of up to 1000V. Aluminum conductors are connected only using special cable tips or after applying a special electrical wire anti -corrosion lubricant to a pre -cleaned conductor. With a frequency of 6-8 weeks after installation, testing the reliability of tightening and additional extending, if necessary, all electrical threaded clamps of external connections.

Complex maintenance and repair should be carried out by qualified personnel at specialized enterprises. Installation and operation of the product are allowed only after studying the operating manual.

The product meets the requirements of Russian and international standards. The use of a stabilizer in production media with increased danger is strictly prohibited.

• Adjustment range: accuracy: 140–260 V, protection: 120–280 centuries.
• High speed speed.
• Intellectual protection against overload. <
• system of absorption of an electric arc.
• compactness and low weight (up to 19 kg)
• increased frost resistance: up to –20 ° C.
• Low noise level.

• The Bypass mode is the ability to power consumers bypassing the stabilizer in models of 3000, 5000, 8000, 9000, 10000, 12000, 15000, 20,000;

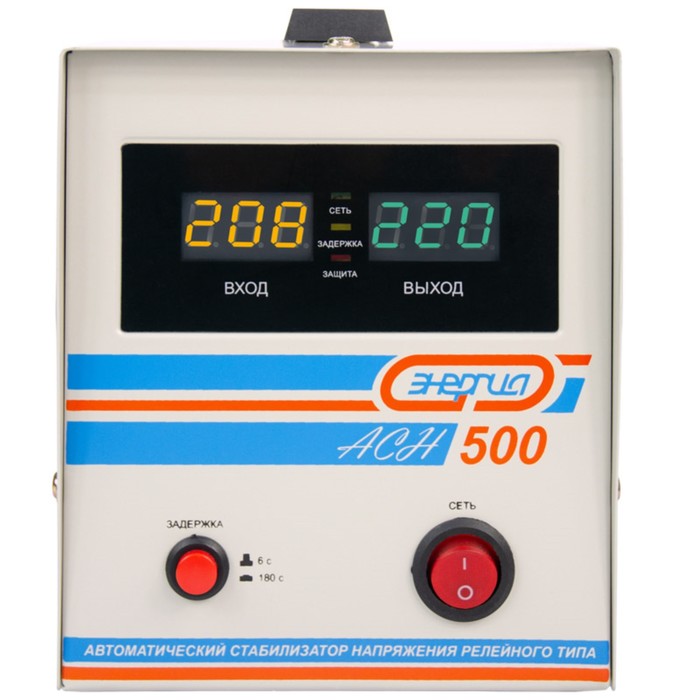

• digital display for displaying work parameters;
• an automatic fuse or switch from short circuit and overload;
• the power transformer winding is reliably protected from external factors;
• Forced cooling allows you to implement additional protection against overheating in models of 8000, 9000, 10,000, 12000.15000, 20,000;
• The presence of an adjustable delay in the inclusion to ensure safe operation of the equipment;
• light Indication of operating modes, a microprocessor -based controller;
• The shunt power relay provides a complete absence of contacts of contacts;
• A convenient pen facilitates the transfer and installationist.

• Two -stage protection against overload;
• Two -stage protection against short circuits;
• thermal protection;
• protection against increased stress;
• protection against low voltage;
• protection against overload at low voltage.
