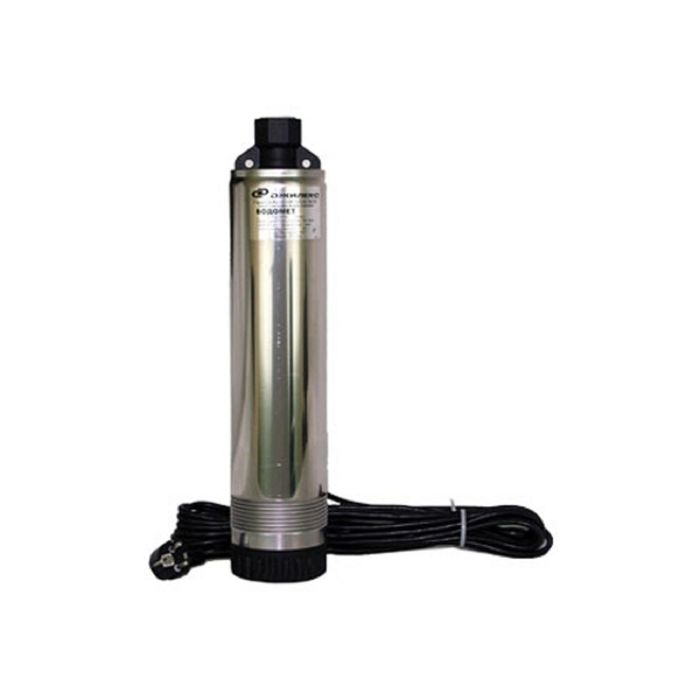

The well pump "Jlex" vodutet prof 40/75 (qmax = 40l/min.; Nmax = 75 m.)

The pump serves to supply water from wells with an inner diameter of 110 mm or more and supplying houses and ornament systems of the garden and garden. The multi -stage model is equipped with floating working wheels washed by an electric motor and built -in capacitor. The device effectively pumps liquid with a content of several kilograms of sand in one cubic meter.

elements of the electric motor are protected from high pressure by two seals. The sealed package of pumping steps eliminates the leakage of the pumped environment. The thermal switch is located outside the oil -filled cavity, which facilitates the diagnosis and repair.

characteristics

• Consumption: 40 l/min.
• Pess: 75 m.
• Power consumption: 670 watts.
• Cable length: 30 m.
• The attachment size: 1 ″.
• Diameter of the pump: 98 mm.
• network parameters: 220 V, 50 Hz.
• weight: 10.9 kg.
• Distribution in the water column: 30 m.
• The maximum size of the transmitted particles: 1.5 mm.
