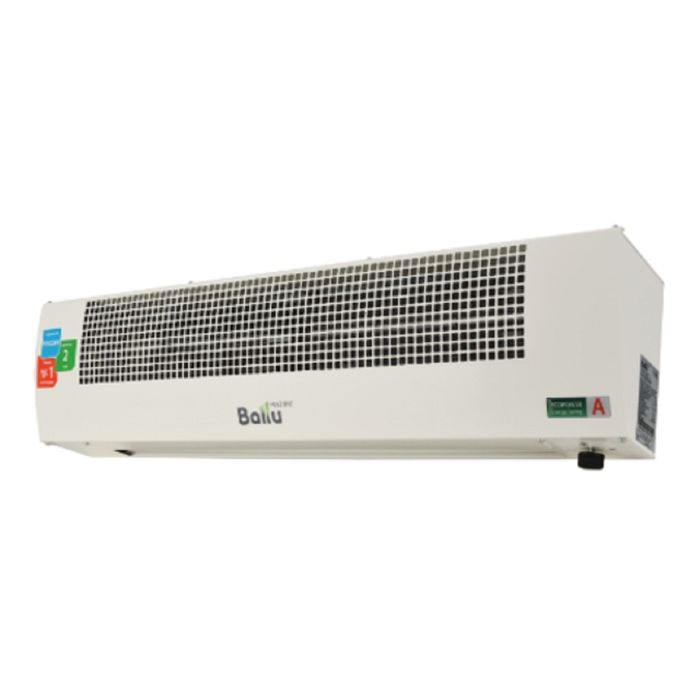

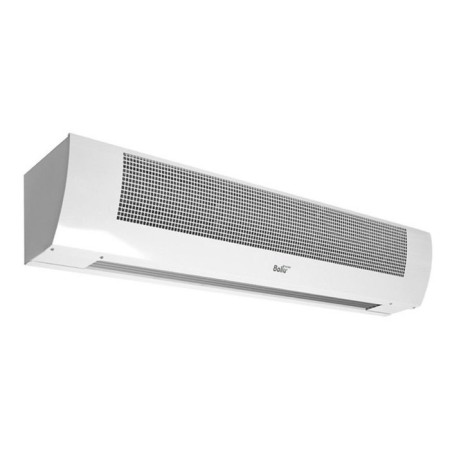

Thermal curtain Ballu BHC-L08-T03

The cold will not pass! The Ballu curtain will not allow air flows from the street to get inside. The device is mounted in the plane of a window or doorway and supplies a powerful warm stream, maintaining a comfortable temperature in the room.

characteristics

• Thermal power: 3/1.5/0 kW.
• Power from the network: 220 V, 50 Hz.
• Air flow rate on the nozzle cut: 5.1 m/s.
• Maximum current: 16 A.
• engine power: 80 watts.
• air flow: 600 m³/h.
• Effective length of the air flow: 2.5 m.
• Air heating: 7.5/15 ℃.
• Sound pressure at a distance of 5 m: 54 dB.
• Dimensional dimensions (Sh × V × g): 816 × 138 × 183 mm.
• degree of moisture protection: IP10.
• Electric protection class: I.
• Installation: horizontal.
• Curtain control: rotary switch.
