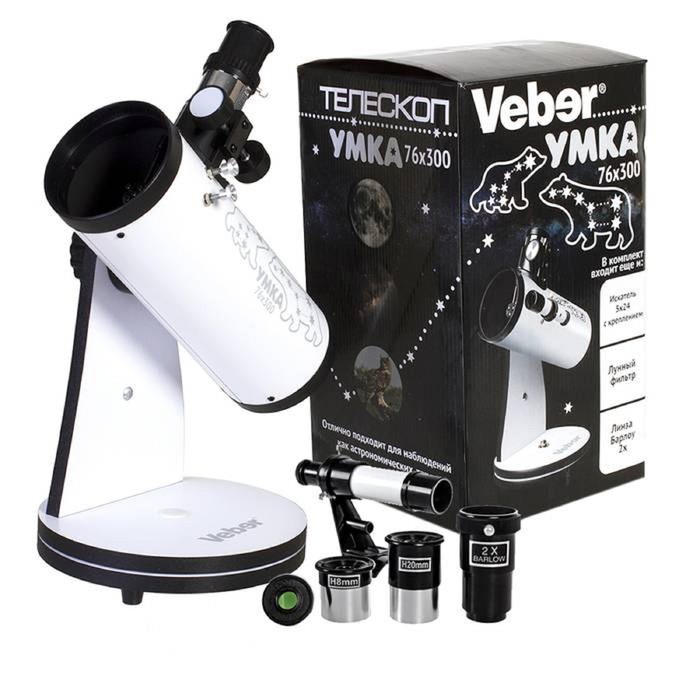

Veber Umka 76 × 300 telescope

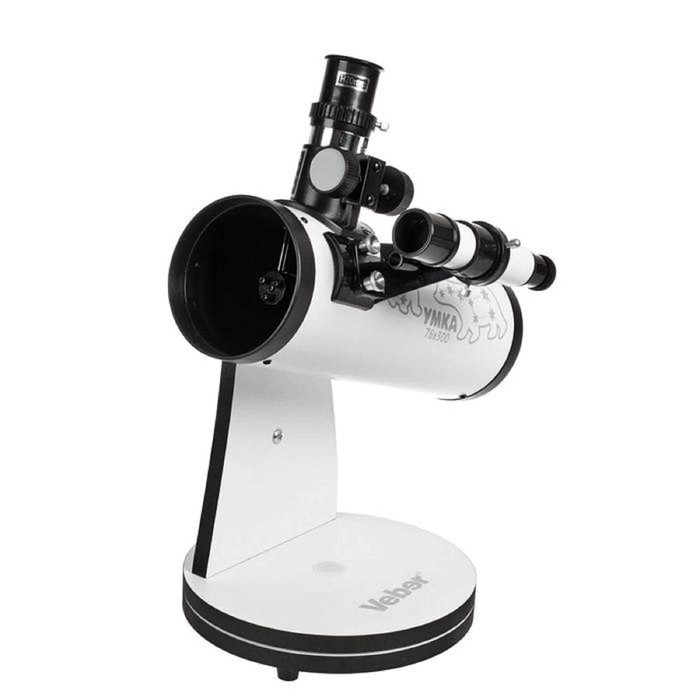

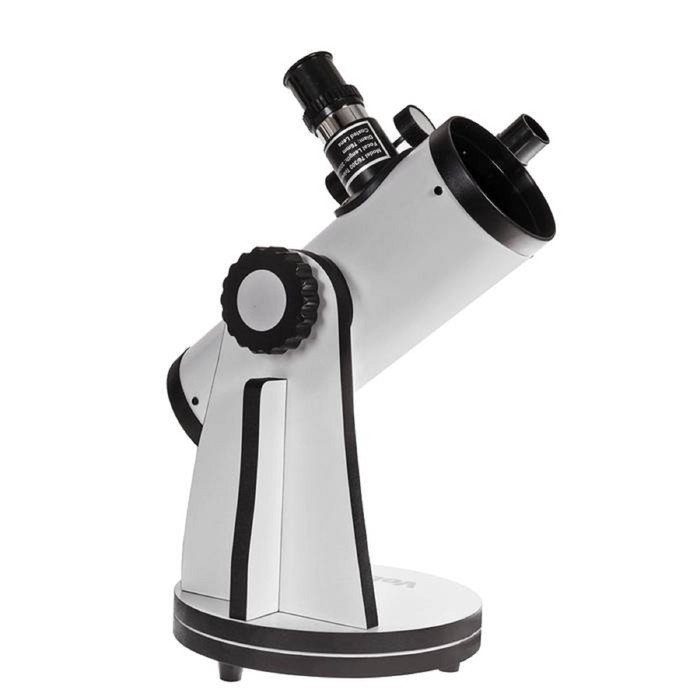

VEBER of UMKU 76/300 is Newton's classic reflector on the asymmutal mounting of a “turret” type (mounting of Dobson). With such small sizes (pipe length 300 mm, 76 mm diameter) it may seem that this is a children's telescope, but look at it, and your opinion will change dramatically. High -quality manufacturing and reliable design of the telescope will easily and in details to consider any stars and objects of the solar system. Moreover, with an increase in 15 times (okular N20 mm) you can focus on any objects during the day. This telescope can also be used as a desktop visual pipe.

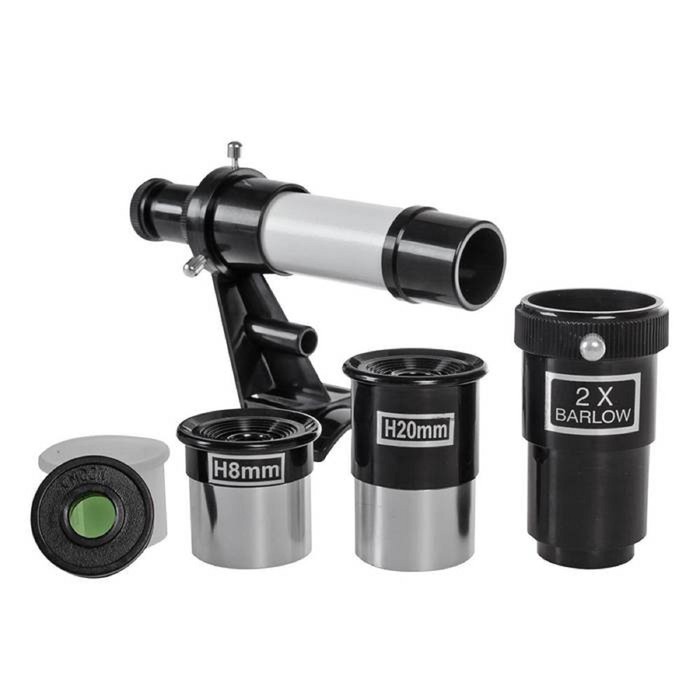

Two eyepieces (8 mm and 20 mm) and 2 -multiple barloou lens include a telescope, due to this, you can change the frequency of increasing the simple replacement of the eyepieces.

High -quality manufacture of mounting, all focusing units and optical elements, allows you to easily and in details to consider many stars and objects of the solar system. Well, for observing the moon, a special lunar filter includes a telescope. It will reduce the undesirable brightness of the reflected light from our natural satellite of the Earth. With such a filter, the clarity of the image will remain unchanged, and the natural color of the moon will remain the same, in addition, this filter is suitable for observing “double” stars.

Installation of eyepieces.

Okular is an optical element that increases the image created by the telescope.

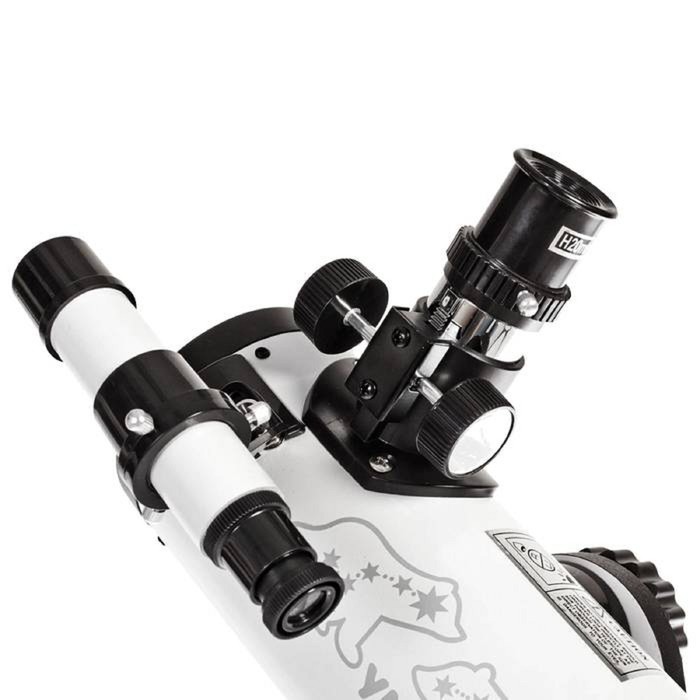

The eyepiece is inserted into the pipe of the focus node, from which you must first remove the plug. The screws should not enter into the pipe of the focus unit. Insert the chrome part of the eyepiece into the focus unit pipe and press the screws. The search for the object should begin using the viewfinder of the telescope. After guiding by the viewfinder to the object, set the eyepiece of a small increase (15x) and focus with it. Then the increase can be increased to 37.5x replacing the eyepiece described above. If the lens Barlow's lens is installed between the eyepiece and the focus unit, the telescope increase will become more than 2 times.

The guidance of a telescope.

Set the telescope on the table or other stable support with a flat surface. The telescope easily rotates in any direction. Loosen the clip of the clinic screw (rotating it counterclockwise) and hold the back of the pipe. Looking along the telescope pipe into the viewfinder, insert it onto the object of interest, moving the back of the pipe, and placing the object in the field of view, click the screw-fixer.

Image orientation.

When observing through an eyepiece from the rear or from the side of the telescope pipe, the image in the eyepiece will be inverted or at an angle.

Focusing.

is carried out by turning the handle of focusing. After the change of eyepieces, you need to make a second focus.

Observation of the moon.

The best time to observe the details of the relief of the moon is not a full moon, but private phases (near the first and last quarter). For comfortable observation, the lunar filter should be used.

Observation of the planets.

Bright planets - Venus, Mars, Jupiter, Saturn - fascinating objects for observations. To observe the planets, you need to know their position in the starry sky at a given time.

Observation of objects of deep cosmos.

To search for these objects (galaxies, foggy and star clusters), it is convenient to use orientation stars, moving the telescope from star to the star in the direction of the search object.

Observation of ground objects.

Just bring the telescope to the object of interest and focus.

Okulans and an increase.

The telescope is supplied with two different eyepieces - 20 mm (increase 15 times) and 8 mm (increase 37.5 times).

When installing the Barlow lens, the increase in the telescope increases by 2 times.
