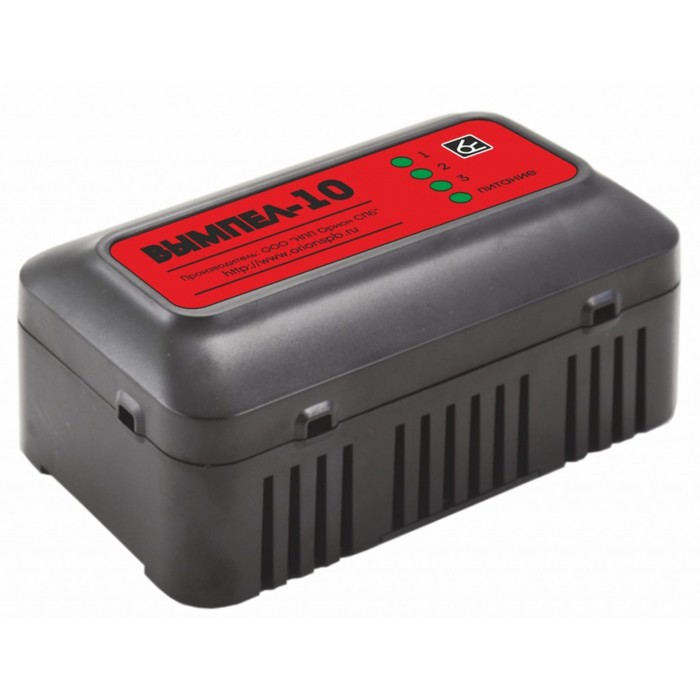

Vimpel charger -10 (2050), 1.2 a, for Li-Pol/Li-Ion AKB

3 of the charging channels (allows you to charge at the same time up to 3 batteries)

a large range of supply voltage

safe long -term maintenance of the charge

consistent inclusion (upon release ) several chargers (for the charge of the battery containing more than 3 elements).

Parallel inclusion (by output) of several chargers (for the charge of the battery with increased current).

characteristics

input voltage: 10-16 V

maximum consumption current: 2a

the number of charge channels (charged battery elements): 3

nominal voltage charged (one ZU): batteries 3.7 / 7.4 / 11,1 V

the threshold voltage of the charge (for each element): 4.1 - 4.2 V

The maximum output current of the charge (for each element): 1.2 A

The minimum acceptable voltage for the start of the charge (on any element of the battery): 2.5 V

three installation options: on DIN Reiku; mount on the wall; On a flat surface (table, shelf, etc.)

a set of delivery

the charger of a penny of 10 - 1 pc.

adapter for connecting power from onboard Car networks 12 V - 1 pc.

connector for connecting to the battery - 1 pc.

fasteners - 2 pcs..

packing box - 1 pc.

charge algorithm: pulsed shutdown

maximum charging current, a: 1.2

adjustment current: no

minimum charging current, but: 0.25

voltage adjustment: no

charge voltage, B: 4.2

cooling: passive (radiator)

Electronic protection from: overheating

dimensions, mm: 115x67x50

Weight, kg: 0.2
