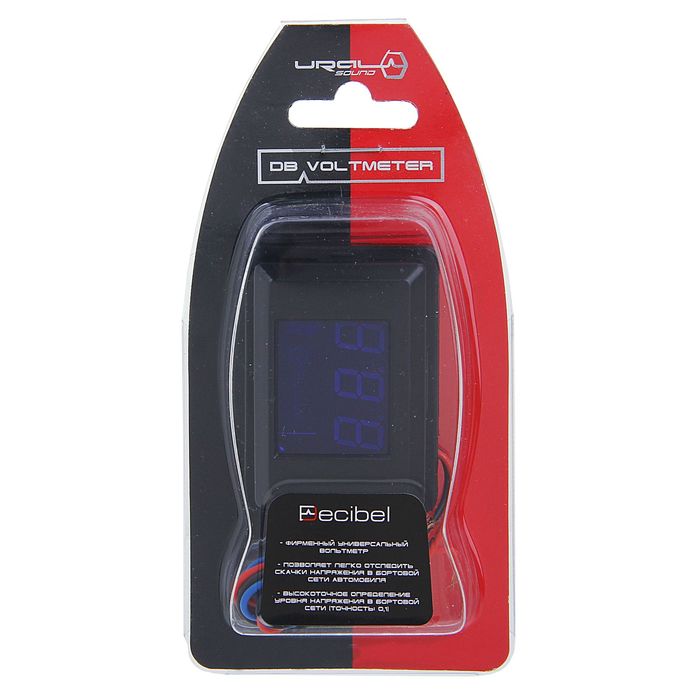

Voltmeter Ural DB, Conclusions 2.5 cm, ABS plastic, up to 15.6 V

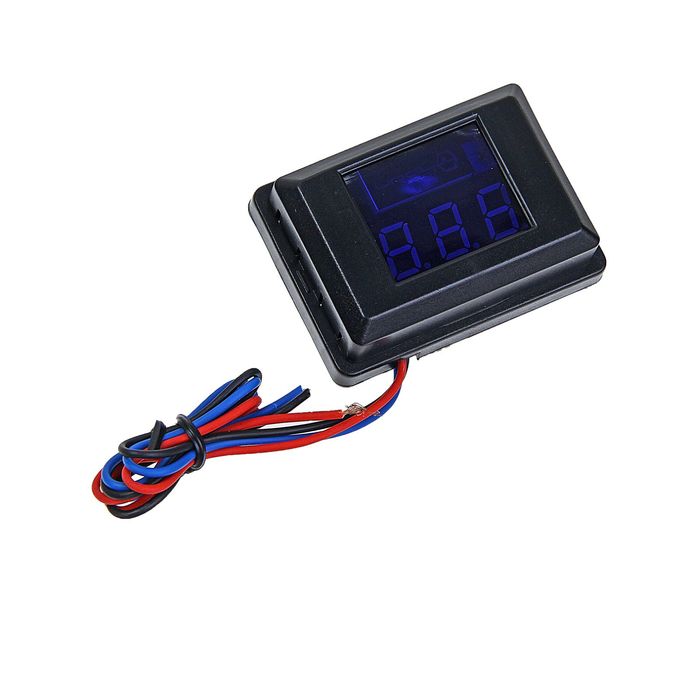

The branded universal voltmeter of the Decibel series easily monitors voltage surges in the on -board network of the car. The use of the microcontroller microcircuit with a clock frequency of 4 MHz provides an almost instantaneous measurement of the operating voltage and the operational tracking of its changes. When the lower permissible threshold of the controlled voltage of the on -board network is reached, the *lo *symbol is displayed on the voltmeter display. Upon reaching the upper permissible threshold of the on -board network voltage, the *Hi *symbol is displayed on the display. When approaching the upper or lower working boundaries of the measured voltage of the on -board network, the readings on a voltmeter begin to flash. In the range of permissible voltages of the on -board network on the display, the operating voltage is displayed.

characteristics

• Color of the backlight: sinnii
• The length of the flexible conclusions of the voltmeter: 250 mm
• Type of display: LED
• number of display discharges: 3
• maximum consumption current: 50 mA
• the indicated voltages of the on -board network: 10.8 - 15.6 V
• Measurement accuracy: 0.1 V
• Threshold voltage LO: 10 V
• Threshold voltage HI: 16 V
• Building Material: ABS

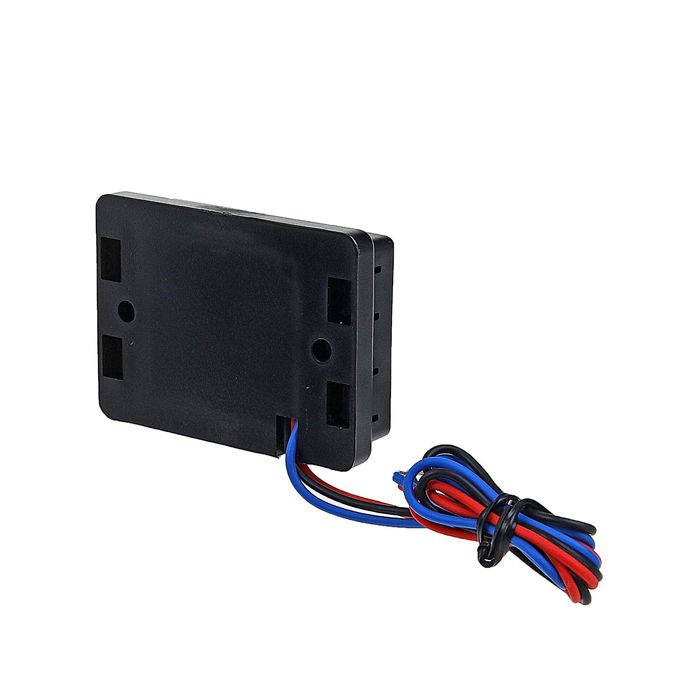

connection

• red wire (+ power cable)
• Black wire ( - power cable - "Earth")
• Blue wire (External control of the inclusion of a voltmeter - "remot")

Installation dimensions

• width: 52 mm
• Height: 36 mm
